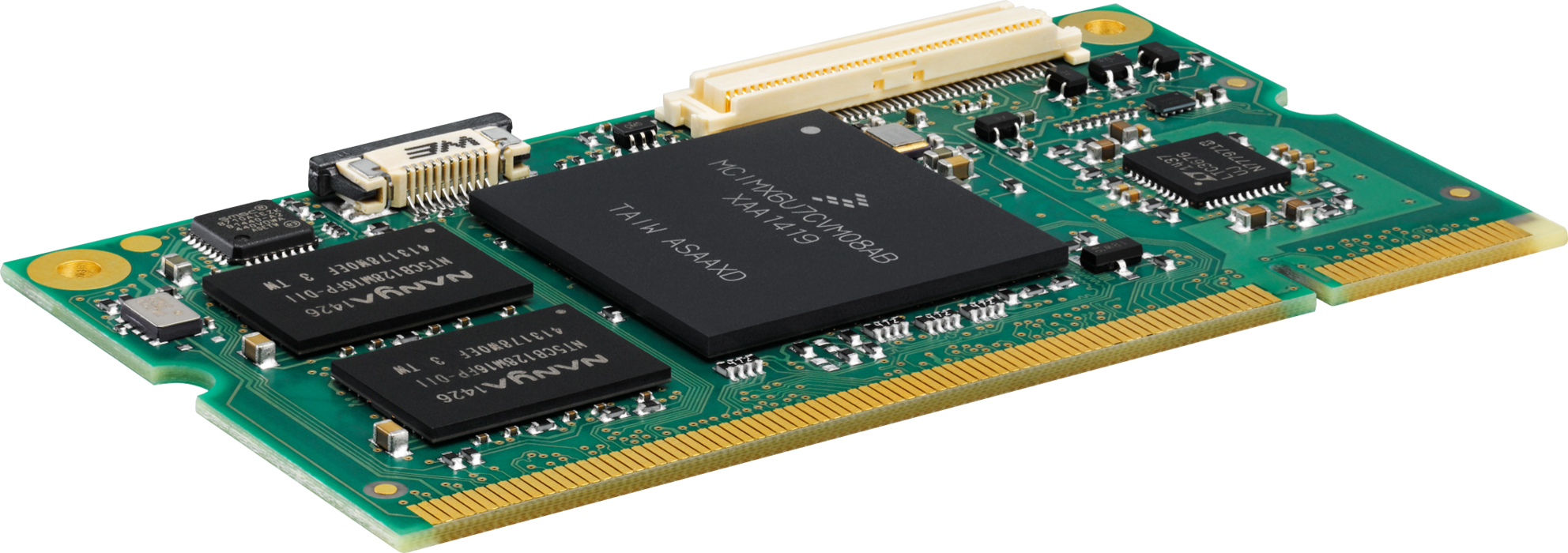

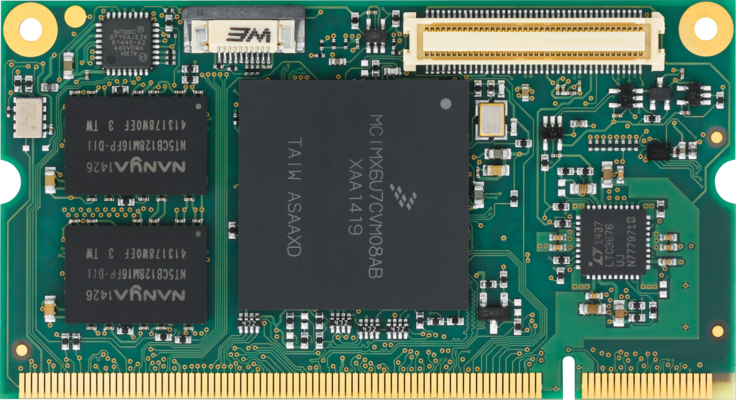

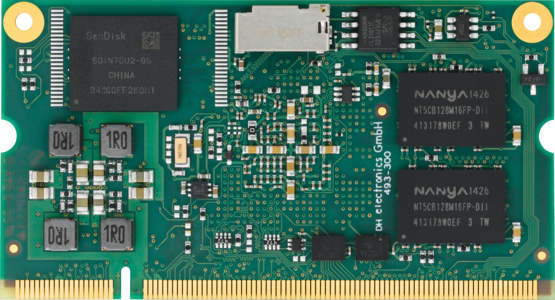

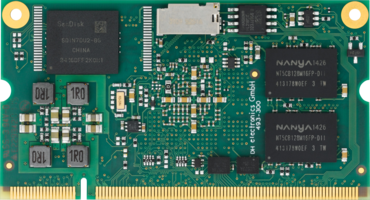

DHCOM i.MX6

Leistungsfähiger Allrounder mit Solo, Dual, DualLite oder Quad Core.

  • Hohe Flexibilität durch Solo, Dual, DualLite, Quad Core  ARM Cortex-A9 Prozessor
  • Mainline Open-Source-Linux (Etnaviv GPU-Treiber)
  • CPU mit 2D/3D Grafikbeschleuniger und Bildverarbeitungseinheit
  • Kein Kühlkörper dank 5-Cent Cooling Solution
  • Kompatibel zu anderen Modulen aus der DHCOM Familie dank SODIMM-200 Sockel
  • Garantierte Langzeitverfügbarkeit von 10+ Jahren
Mögliche Einsatzgebiete
Gebäudeautomation
Labor- und Messtechnik
eMobility & Transportwesen
Maschinen & Anlagenbau
Medizintechnik & Gesundheitswesen

Board type

Pluggable SOM

5-Cent Cooling available

Yes

CPU details

Dual ARM Cortex-A9 up to 1.2 GHz as Solo / DualLite / Dual / Quad

CPU vendor

NXP

CPU type

Cortex-A9

Co-processor available

No

Number of cores

1 | 2 | 4

GPU available

Yes

DDR3 DRAM

256 / 512 / 1024 / 2048 MB

E2Prom

128 Byte

microSD available

Yes

External RTC available

Yes

Bluetooth available

No

WiFi available

No

BSP

Linux (Debian, Yocto)

Debug interface

JTAG interface on module

Power supply

3.3 or 5 VDC

Typ. power consumption

1.5 to 4.0 W

Operating temperature

-40 to +85 °C

Storage temperature

-40 to +85 °C

Dimensions

67.6 x 36.7 x 6.5 mm

SODIMM-200 socket

Bus interface

16 Bit

Ethernet 1

10 / 100 Mbit/s

Ethernet 2

-

MMC/SD

4 Bit mode

CAN 1

1 V2.0B

CAN 2

-

UART 1

Full function, up to 5.0 Mbit/s

UART 2

Rx / Tx / Rts / Cts, up to 5.0 Mbit/s

UART 3

Rx / Tx, up to 5.0 Mbit/s

SPI 1

25 MHz

SPI 2

25 MHz

I2C 1

400 kbit

I2C 2

400 kbit

USB host 1

High-speed

USB host 2

-

USB OTG

High-speed

CSI (parallel camera)

-

Display LVDS 1

60 fps

Touch

4-wire

I2S

1

Number of GPIOs

23

PWM output

1 PWM out, 16 Bit

Analog inputs

1x 12 Bit SAR converter

High-speed socket

RGMII (Gbit Ethernet)

1

SATA

Serial ATA Rev. 2.5

PCIe

PCIe 2.0 and 1.1 compliant

MIPI CSI-2 (Camera)

MIPI D-PHY support, 2-data lanes

Display LVDS 2

60 fps

HDMI

Max. 1080p @60 Hz

Downloads
  Name Größe
Datasheet DHCOM i.MX6 ~ 1 MB
User Manual DHCOM i.MX6 User Manual DHCOM i.MX6 1 MB

Board type

Pluggable SOM

5-Cent Cooling available

Yes

CPU details

Dual ARM Cortex-A9 up to 1.2 GHz as Solo / DualLite / Dual / Quad

CPU vendor

NXP

CPU type

Cortex-A9

Co-processor available

No

Number of cores

1 | 2 | 4

GPU available

Yes

DDR3 DRAM

256 / 512 / 1024 / 2048 MB

E2Prom

128 Byte

microSD available

Yes

External RTC available

Yes

Bluetooth available

No

WiFi available

No

BSP

Linux (Debian, Yocto)

Debug interface

JTAG interface on module

Power supply

3.3 or 5 VDC

Typ. power consumption

1.5 to 4.0 W

Operating temperature

-40 to +85 °C

Storage temperature

-40 to +85 °C

Dimensions

67.6 x 36.7 x 6.5 mm

SODIMM-200 socket

Bus interface

16 Bit

Ethernet 1

10 / 100 Mbit/s

Ethernet 2

-

MMC/SD

4 Bit mode

CAN 1

1 V2.0B

CAN 2

-

UART 1

Full function, up to 5.0 Mbit/s

UART 2

Rx / Tx / Rts / Cts, up to 5.0 Mbit/s

UART 3

Rx / Tx, up to 5.0 Mbit/s

SPI 1

25 MHz

SPI 2

25 MHz

I2C 1

400 kbit

I2C 2

400 kbit

USB host 1

High-speed

USB host 2

-

USB OTG

High-speed

CSI (parallel camera)

-

Display LVDS 1

60 fps

Touch

4-wire

I2S

1

Number of GPIOs

23

PWM output

1 PWM out, 16 Bit

Analog inputs

1x 12 Bit SAR converter

High-speed socket

RGMII (Gbit Ethernet)

1

SATA

Serial ATA Rev. 2.5

PCIe

PCIe 2.0 and 1.1 compliant

MIPI CSI-2 (Camera)

MIPI D-PHY support, 2-data lanes

Display LVDS 2

60 fps

HDMI

Max. 1080p @60 Hz

Artikelnummer Modell Produktbeschreibung
HI00102 DHCM-iMX6Q-C0800-R102-F0819-E-SD-RTC-T-HS-I-01D2 DHCOM i.MX6 Quad, 800 MHz, 1024 MByte DRAM, 8192 MByte eMMC flash, ethernet, microSD socket, RTC, resistive touch, Highspeed interface connector, -40 to +85 °C, DHCOM revision, SODIMM200 socket
HI00101 DHCM-iMX6DL-C0800-R102-F0819-E-SD-RTC-T-HS-I-01D2 DHCOM i.MX6 DualLite, 800 MHz, 1024 MByte DRAM, 8192 MByte eMMC flash, ethernet, microSD socket, RTC, resistive touch, Highspeed interface connector, -40 to +85 °C, DHCOM revision, SODIMM200 socket
HI00103 DHCM-iMX6S-C0800-R051-F0819-E-SD-RTC-T-HS-I-01D2 DHCOM i.MX6 Solo, 800 MHz, 512 MByte DRAM, 8192 MByte eMMC flash, ethernet, microSD socket, RTC, resistive touch, Highspeed interface connector, -40 to +85 °C, DHCOM revision, SODIMM200 socket
