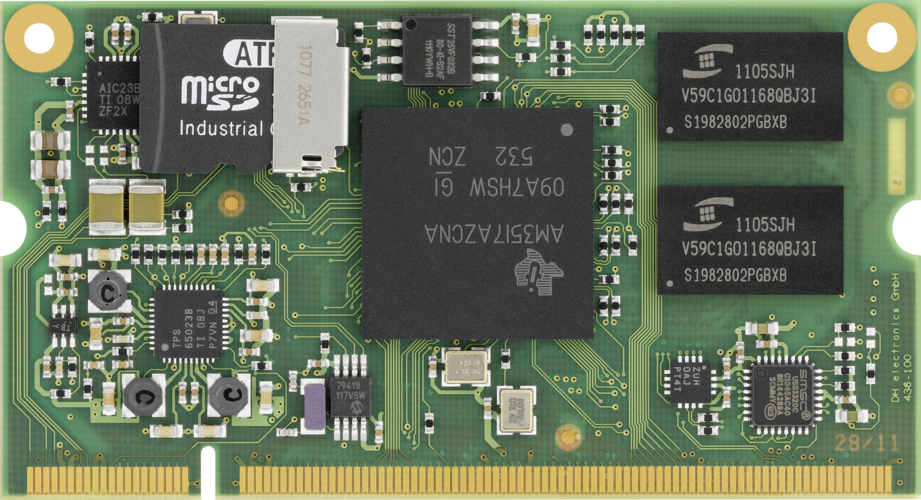

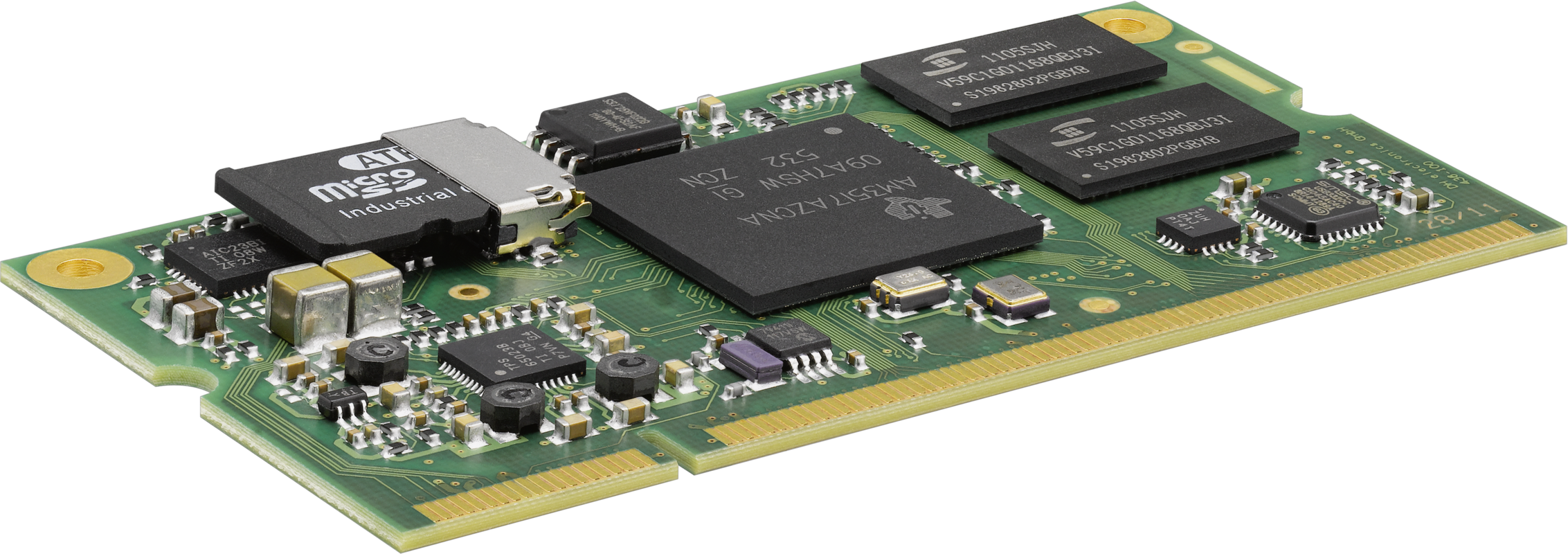

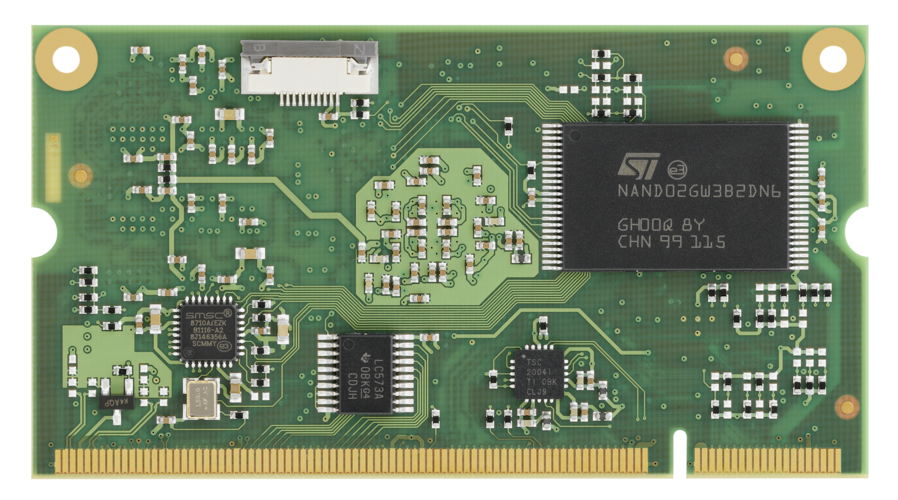

DHCOM AM35

NRND

Unterstützt Sie bei der schnellen Entwicklung von Embedded Applikationen.

  • Bewährter Cortex-A8 Prozessor von Texas Instruments mit 600 MHz
  • Optimierte Leistung für Industrie und Multimedia
  • Kompatibel zu anderen Modulen aus der DHCOM Familie dank SODIMM-200 Sockel
  • Garantierte Langzeitverfügbarkeit entsprechend Angaben des Prozessorherstellers
Mögliche Einsatzgebiete
Automation
Metrology
eMobility
Engineering
Health

Board type

Pluggable SOM

5-Cent Cooling available

No

CPU details

ARM Cortex®-A8 up to 600 MHz

CPU vendor

TI

CPU type

Cortex-A8

Co-processor available

No

Number of cores

1

GPU available

No

DDR2 DRAM

128 / 256 / 512 MB

SLC-NAND flash

0 / 128 / 256 / 512 / 1024 MB

E2Prom

128 Byte

microSD available

Yes

External RTC available

Yes

Bluetooth available

No

BSP

Linux (Debian, Yocto)

Debug interface

JTAG interface on module

Power supply

3.3 or 5 VDC

Typ. power consumption

1.4 W

Operating temperature

-40 to +85 °C

Storage temperature

-40 to +85 °C

Dimensions

67.6 x 36.7 x 8.1 mm

SODIMM-200 socket

Bus interface

16 Bit

Ethernet 1

10 / 100 Mbit/s

Ethernet 2

-

MMC/SD

4 Bit mode

CAN 1

1 Mbit/s

CAN 2

-

UART 1

up to 3.6 Mbit/s

UART 2

Rx / Tx / Rts / Cts, up to 3.6 Mbit/s

UART 3

Rx / Tx, up to 3.6 Mbit/s

SPI 1

48 MHz

SPI 2

48 MHz

I2C 1

3.4 Mbit

I2C 2

3.4 Mbit

USB host 1

High-speed

USB host 2

High-speed

USB OTG

High-speed

Camera

10 Bit

Display RGB

24 Bit

Display LVDS

-

Touch

4-wire

Audio

Microphone, line-in, headset

Number of GPIOs

23

PWM output

1 PWM out, 16 Bit

Analog inputs

1 Analog in, 10 Bit, SAR converter

Board type

Pluggable SOM

5-Cent Cooling available

No

CPU details

ARM Cortex®-A8 up to 600 MHz

CPU vendor

TI

CPU type

Cortex-A8

Co-processor available

No

Number of cores

1

GPU available

No

DDR2 DRAM

128 / 256 / 512 MB

SLC-NAND flash

0 / 128 / 256 / 512 / 1024 MB

E2Prom

128 Byte

microSD available

Yes

External RTC available

Yes

Bluetooth available

No

BSP

Linux (Debian, Yocto)

Debug interface

JTAG interface on module

Power supply

3.3 or 5 VDC

Typ. power consumption

1.4 W

Operating temperature

-40 to +85 °C

Storage temperature

-40 to +85 °C

Dimensions

67.6 x 36.7 x 8.1 mm

SODIMM-200 socket

Bus interface

16 Bit

Ethernet 1

10 / 100 Mbit/s

Ethernet 2

-

MMC/SD

4 Bit mode

CAN 1

1 Mbit/s

CAN 2

-

UART 1

up to 3.6 Mbit/s

UART 2

Rx / Tx / Rts / Cts, up to 3.6 Mbit/s

UART 3

Rx / Tx, up to 3.6 Mbit/s

SPI 1

48 MHz

SPI 2

48 MHz

I2C 1

3.4 Mbit

I2C 2

3.4 Mbit

USB host 1

High-speed

USB host 2

High-speed

USB OTG

High-speed

Camera

10 Bit

Display RGB

24 Bit

Display LVDS

-

Touch

4-wire

Audio

Microphone, line-in, headset

Number of GPIOs

23

PWM output

1 PWM out, 16 Bit

Analog inputs

1 Analog in, 10 Bit, SAR converter
