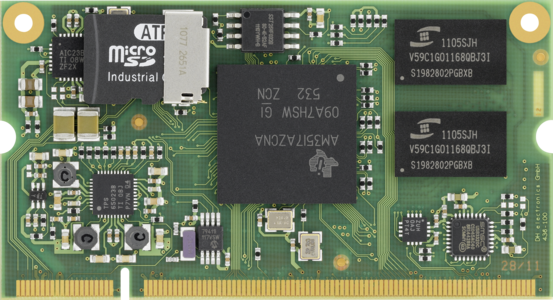

DHCOM AM35

NRND

Supports you in the rapid development of embedded applications.

Proven Cortex-A8 processor from Texas Instruments with 600 MHz
Optimized performance for industry and multimedia
Compatible with other modules from the DHCOM family thanks to SODIMM-200 socket
Guaranteed long-term availability according to processor manufacturer's specifications

Possible Application

Request product

Technical Data
Block Diagrams
Product Details

Board type

Pluggable SOM

5-Cent Cooling available

CPU details

1x ARM Cortex®-A8 up to 600 MHz

CPU type

Cortex-A8

Co-processor available

Number of cores

tbd.

GPU available

DDR2 DRAM

128 / 256 / 512 MB

SLC-NAND flash

0 / 128 / 256 / 512 / 1024 MB

E2Prom

128 Byte

microSD available

External RTC available

Bluetooth available

BSP

Linux (Debian, Yocto)

Debug interface

JTAG interface on module

Power supply

3.3 or 5 VDC

Typ. power consumption

1.4 W

Operating temperature

-40 to +85 °C

Storage temperature

-40 to +85 °C

Dimensions

67.6 x 36.7 x 8.1 mm

SODIMM-200 socket

Bus interface

16 Bit

Ethernet 1

10 / 100 Mbit/s

Ethernet 2

MMC/SD

4 Bit mode

CAN 1

1 Mbit/s

CAN 2

UART 1

up to 3.6 Mbit/s

UART 2

Rx / Tx / Rts / Cts, up to 3.6 Mbit/s

UART 3

Rx / Tx, up to 3.6 Mbit/s

SPI 1

48 MHz

SPI 2

48 MHz

I2C 1

3.4 Mbit

I2C 2

3.4 Mbit

USB host 1

High-speed

USB host 2

High-speed

USB OTG

High-speed

Camera

10 Bit

Display RGB

24 Bit

Display LVDS

Touch

4-wire

Audio

Microphone, line-in, headset

Number of GPIOs

PWM output

1 PWM out, 16 Bit

Analog inputs

1 Analog in, 10 Bit, SAR converter

The DHCOM AM35 is a pluggable, low-cost computer module designed for industrial and mobile applications. With the proven Cortex-A8 processor from Texas Instruments, the DHCOM AM35 supports the rapid development of embedded applications and offers optimized performance for industrial and multimedia applications. The DHCOM AM35 is compatible with other System on Modules from the DHCOM family thanks to the SODIMM-200 socket. The guaranteed long-term availability of the DHCOM AM35 is according to the specifications of the processor manufacturer. The DHCOM AM35 is ideally suited for applications in the field of building automation, laboratory and measurement technology, mechanical and plant engineering as well as e-mobility.

Downloads

	Name	Size
	Datasheet DHCOM AM35	~ 5 MB
	User Manual DHCOM AM35	1 MB
