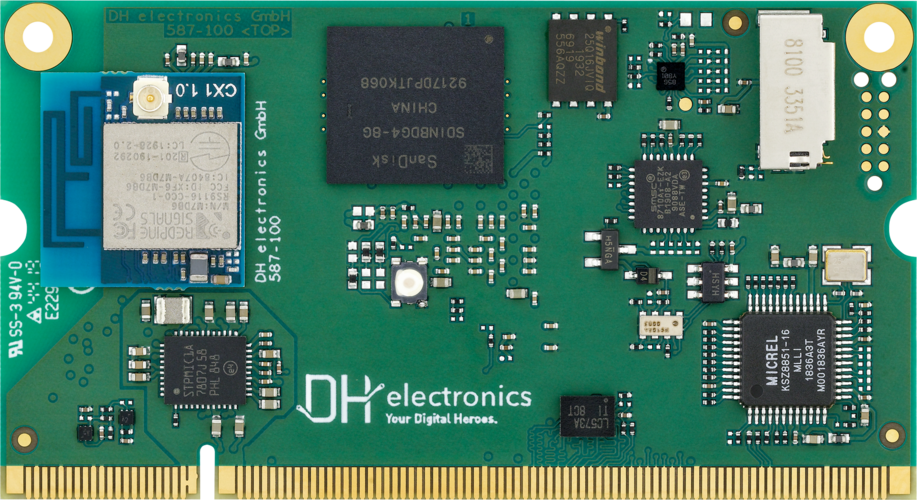

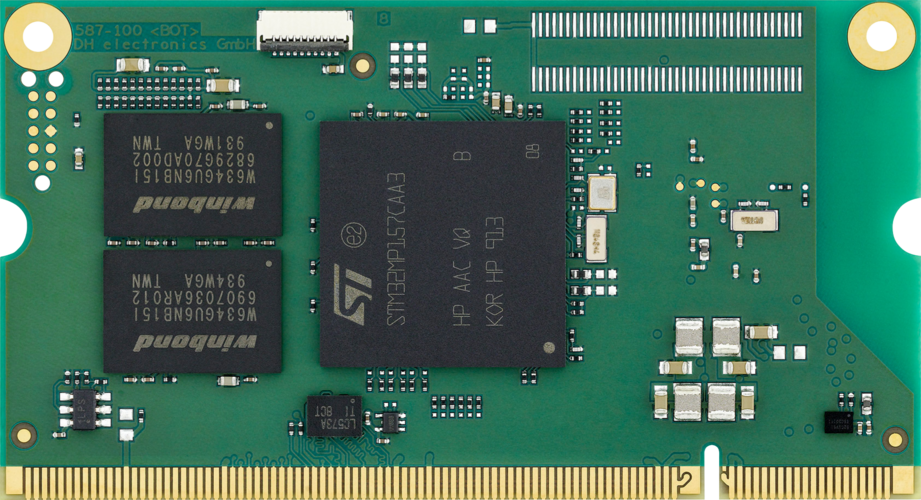

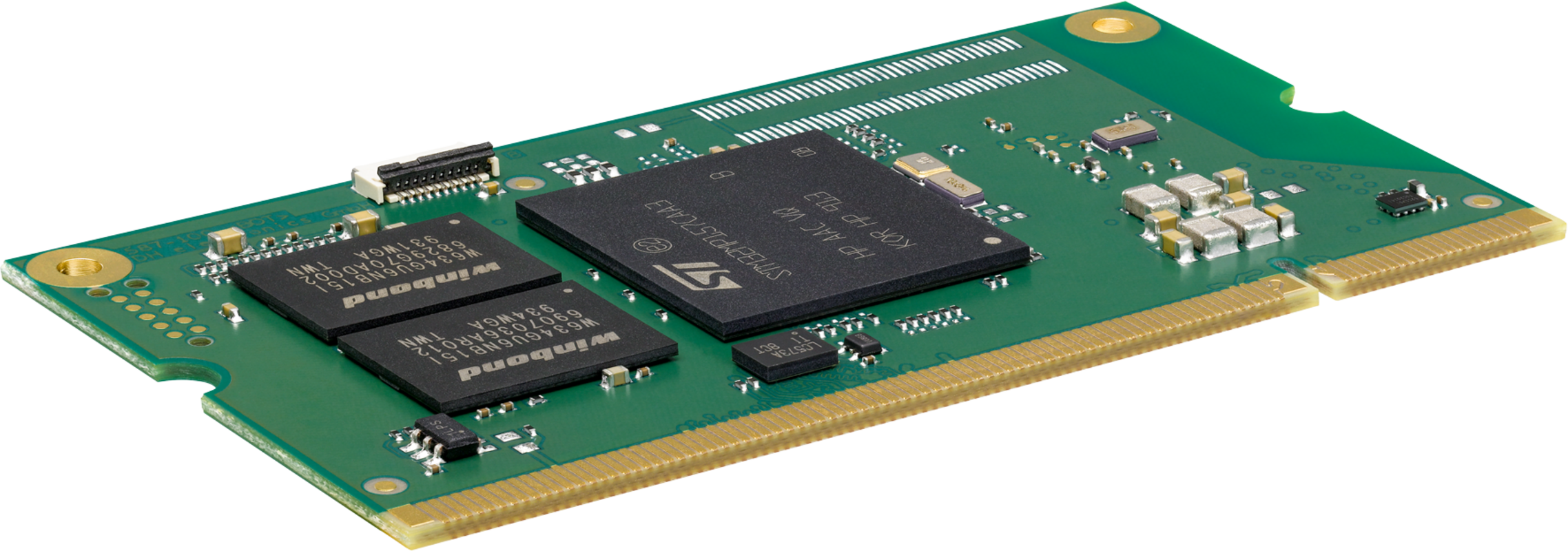

DHCOM STM32MP15

DHCOM STM32MP15
DHCOM STM32MP15
DHCOM STM32MP15

STM32MP1 in the 800 MHz variant for even more performance.

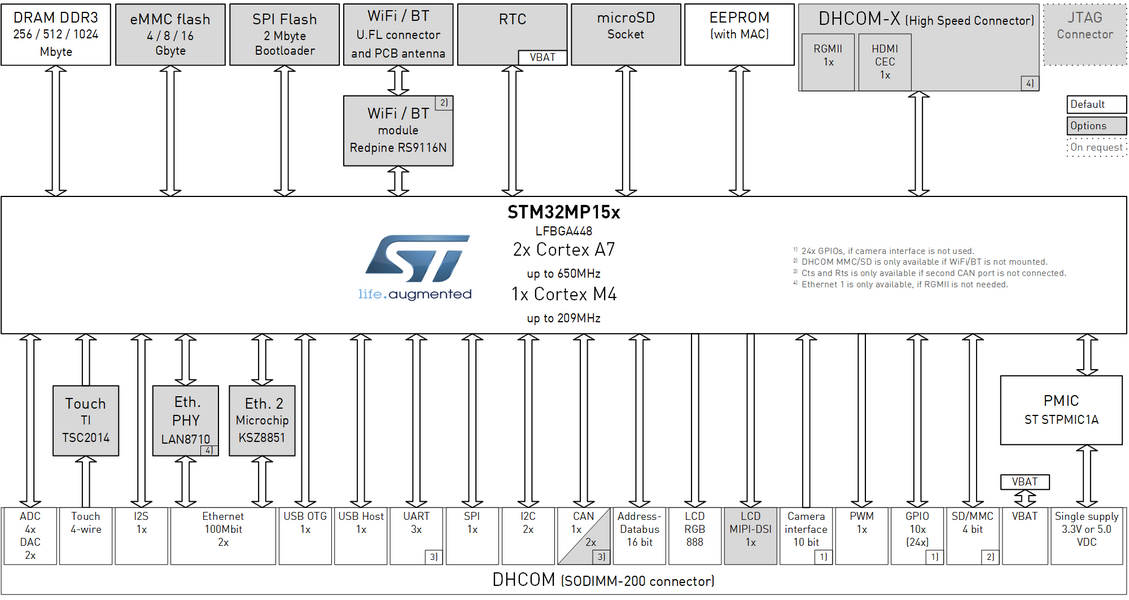

  • Dual Core ARM Cortex-A7 CPU with Cortex-M4 subsystem
  • MPU from the famous STM32MP1 series by STMicroelectronics
  • Mainline open source Linux with Etnaviv GPU driver support
  • Advanced hardware encryption and Secure Boot
  • Dual Band WiFi and Dual Mode Bluetooth 5
  • Compatible with other modules from the DHCOM family (SODIMM-200 socket)
  • Guaranteed long-term availability of 10+ years
Possible Application
Automation
Metrology
eMobility
Engineering
Health
Request product

Board type

Pluggable SOM

5-Cent Cooling available

No

CPU details

2x ARM Cortex-A7 up to 800 MHz
1x ARM Cortex-M4 up to 209 MHz

CPU vendor

ST

CPU type

Cortex-A7
Cortex-M4

Co-processor available

Yes

Number of cores

1 | 2

GPU available

Yes

DDR3 DRAM

256 / 512 / 1024 MB

eMMC flash

4 / 8 / 16 /32 GB GB

SPI NOR flash

2 MB

E2Prom

256 Byte

microSD available

Yes

External RTC available

Yes

Bluetooth available

Yes

Bluetooth version

Bluetooth® v5.0 (BR/EDR/BLE), PCB and U.FL antenna connector

WiFi available

Yes

WiFi version

WiFi IEEE 802.11b/g/n, 802.11j (hosted mode) with dual band

BSP

Linux (Debian, Yocto)

Debug interface

JTAG interface on module

Power supply

3.3 or 5 VDC

Typ. power consumption

1.0 to 1.5 W

Operating temperature

-40 to +85 °C

Storage temperature

-40 to +85 °C

Dimensions

67.6 x 36.7 x 6.5 mm

SODIMM-200 socket

Bus interface

16 Bit

Dual Ethernet available

Yes

Ethernet 1

10 / 100 Mbit/s

Ethernet 2

10 / 100 Mbit/s

MMC/SD

4 Bit mode

CAN 1

1 V2.0B and CAN FD V1.0, TTCAN (time triggered)

CAN 2

V2.0B and CAN FD V1.0

UART 1

Rx / Tx / Rts / Cts, up to 12.5 Mbit/s

UART 2

Rx / Tx / Rts / Cts, up to 12.5 Mbit/s

UART 3

Rx / Tx, up to 12.5 Mbit/s

SPI 1

50 Mbit/s

SPI 2

-

I2C 1

1 Mbit/s

I2C 2

1 Mbit/s

USB host 1

High-speed

USB host 2

-

USB OTG

High-speed

CSI (parallel camera)

10 Bit

Display RGB

24 Bit

MIPI-DSI

MIPI®-DSI 2 data lanes up to 1 GHz each

Touch

4-wire

I2S

1

Number of GPIOs

24

PWM output

1 PWM out, 16 Bit

Analog inputs

4x 16 Bit ADC and 2x 12 Bit DAC

Item Number Model (other configurations on request) Product description
HS00014 DHCM-STM32MP157C-C065-R102-F0819-SPI-E2-CAN2-SD-RTC-WBT-T-DSI-I-01D2 DHCOM STM32MP157C, 650 MHz, 1024 MByte DRAM, 8192 MByte eMMC flash, 2 MByte SPI boot flash, 2x100 Mbit ethernet, second CAN port, microSD socket, RTC, WiFi and BT module, resistive touch, MIPI-DSI interface connected to LVDS, -25 to +85 °C, DHCOM revision, SODIMM200 socket
HS00015 DHCM-STM32MP157C-C065-R102-F0819-SPI-E-CAN2-SD-RTC-T-DSI-I-01D2 DHCOM STM32MP157C, 650 MHz, 1024 MByte DRAM, 8192 MByte eMMC flash, 2 MByte SPI boot flash, 1x100 Mbit ethernet, second CAN port, microSD socket, RTC, resistive touch, MIPI-DSI interface connected to LVDS, -25 to +85 °C, DHCOM revision, SODIMM200 socket
HS00016 DHCM-STM32MP153C-C065-R102-F0819-SPI-E2-CAN2-RTC-I-01D2 DHCOM STM32MP153C, 650 MHz, 1024 MByte DRAM, 8192 MByte eMMC flash, 2 MByte SPI boot flash, 2x100 Mbit ethernet, second CAN port, RTC, -25 to +85 °C, DHCOM revision, SODIMM200 socket
HS00017 DHCM-STM32MP153C-C065-R051-F0819-SPI-E-CAN2-I-01D2 DHCOM STM32MP153C, 650 MHz, 512 MByte DRAM, 8192 MByte eMMC flash, 2 MByte SPI boot flash, 1x100 Mbit ethernet, second CAN port, -25 to +85 °C, DHCOM revision, SODIMM200 socket
FD00065 Premium Development Kit DHCOM STM32MP15 FD00034 DHCOM Premium Developer Kit 2
FD00029 DHCOM PDK Cablekit
HS00014 DHCM-STM32MP157C-C065-R102-F0819-SPI-E2-CAN2-SDR104-RTC-WBT-T-DSI-I-01D2
SD00025 32 GByte microSD card
FD00035 DHCOM-7" Display (cap. Touch) with adapter
VV00038 Suitcase Premium Developer Kit
* Other configurations on request
What is the model number for ordering? DHCM-CPU-Cxxx-Rxxx[-Fxxxx][-SPI][-E/E2][-CAN2][-SD/SDR104][-RTC][-WBT][-T][-DSI] [-HS]-X-01D2
CPU STM32MP157C: Dual Cortex®-A7, HW Crypto, 3D GPU, FDCAN, MIPI®-DSI
STM32MP157A: Dual Cortex®-A7, 3D GPU, FDCAN, MIPI®-DSI
STM32MP153C: Dual Cortex®-A7, HW Crypto, FDCAN
STM32MP153A: Dual Cortex®-A7, FDCAN
STM32MP151C: Single Cortex®-A7, HW Crypto
STM32MP151A: Single Cortex®-A7
Cxxx 650 MHz: C065
Rxxx 256 Mbyte: R025, 512 Mbyte: R051, 1024 Mbyte: R102
X Commercial temperature range (0 to +70 °C): C, Industrial temperature range (-40 to +85 °C): I
Industrial temp. range is -25 to +85 °C for eMMC. Please contact us for –40 to +85 °C version.
Industrial temp. range is –20 to +85 °C for 800 MHz version.
01D2 DHCOM Revision, SODIMM200 socket
Options
[-Fxxxx] 4096 Mbyte eMMC: F0409, 8192 Mbyte eMMC: F0819, 16384 Mbyte eMMC: F1638
[-SPI] 2 Mbyte SPI boot flash
[-E] or [-E2] 1x 100 Mbit Ethernet: E
2x 100 Mbit Ethernet: E2
[-CAN2] Second CAN port available
[-SD] microSD socket with high speed connection: SD
[-RTC] Low power temperature compensated real time clock (instead of CPU internal RTC)
[-WBT] WiFi and Bluetooth® via Redpine RS9116N module with U.FL connector and PCB antenna: WBT
[-T] Resistive touch controller
[-DSI] MIPI-DSI interface connected to LVDS SODIMM-200 connections
RGMII and CEC on request
Image Title Description
Premium Development Kit Premium Development Kit Premium Development Kit for all pluggable SOMs
Cable Kit Premium Development Kit Cable Kit Premium Development Kit Contains all necessary cables for Premium Development Kit
7'' Display with capacitive touch 7'' Display with capacitive touch 7'' RGB display for testing purposes
microSD card with Linux Mainline Yocto microSD card with Linux Mainline Yocto 32 GByte microSD card
Protection Case Protection Case Robust suitcase for storage and transportation

The DHCOM STM32MP15 with Dual Cortex-A7 and Cortex-M4 is a powerful Dual core module with up to 800 MHz for IoT and HMI applications. As an ST Authorized Partner, DH relies on the well-known STM32MP1 microprocessor series from STMicroelectronics, which enables easy development for a wide range of applications. The STM32MP1 microprocessor series ranges from one ARM Cortex-A7 to two ARM Cortex-A7 and Cortex-M4 cores. The Cortex-A7 processor provides access to open source operating systems, while the Cortex-M4 processor utilizes the STM32 MCU ecosystem. Our DHCOM STM32MP15 features advanced hardware encryption and secure boot. The pluggable system on module is compatible with other computer modules from the DHCOM family thanks to the SODIMM-200 socket. The System on Module from DH electronics can be used in a wide range of applications, from building automation to laboratory and measurement technology, mechanical and plant engineering and e-mobility. DH electronics also offers guaranteed long-term availability of 10+ years for the DHCOM STM32MP15.

STM32-based DHSOMs

Downloads
  Name Size
Datasheet DHCOM STM32MP15 ~ 5 MB
User Manual DHCOM STM32MP15 User Manual DHCOM STM32MP15 1 MB
