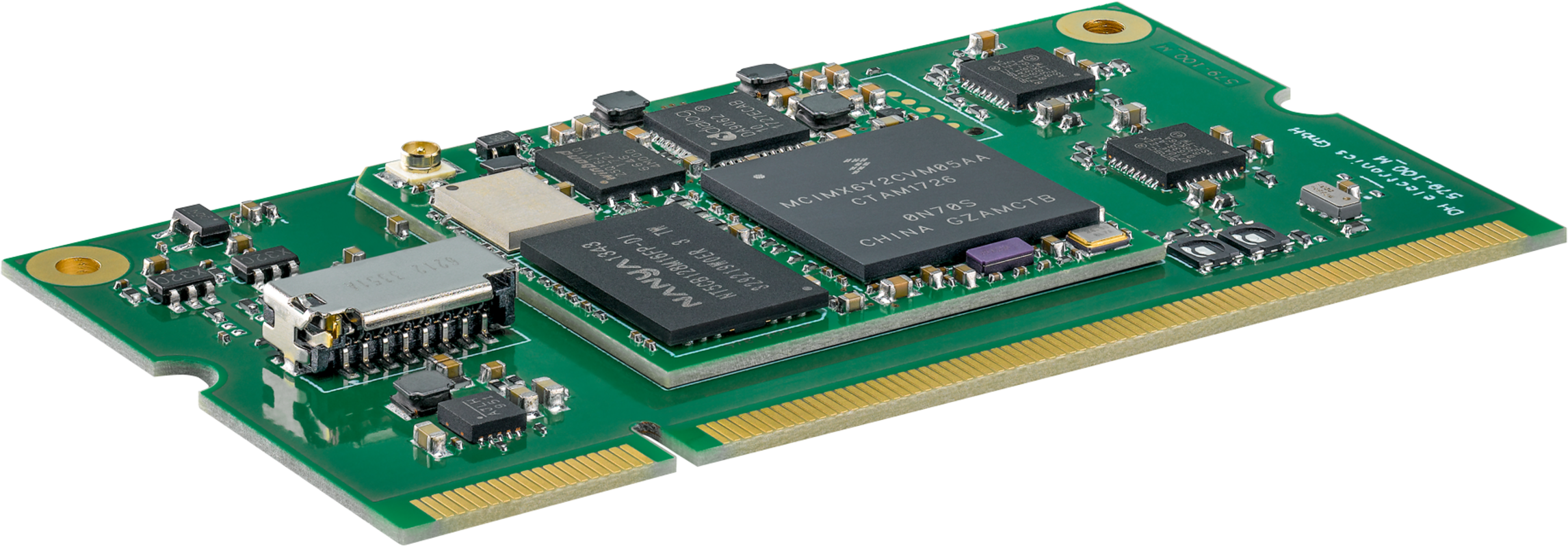

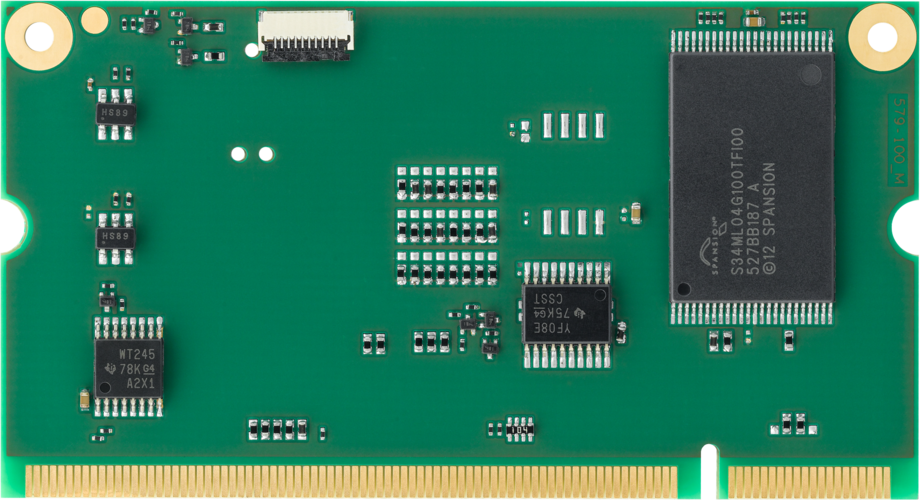

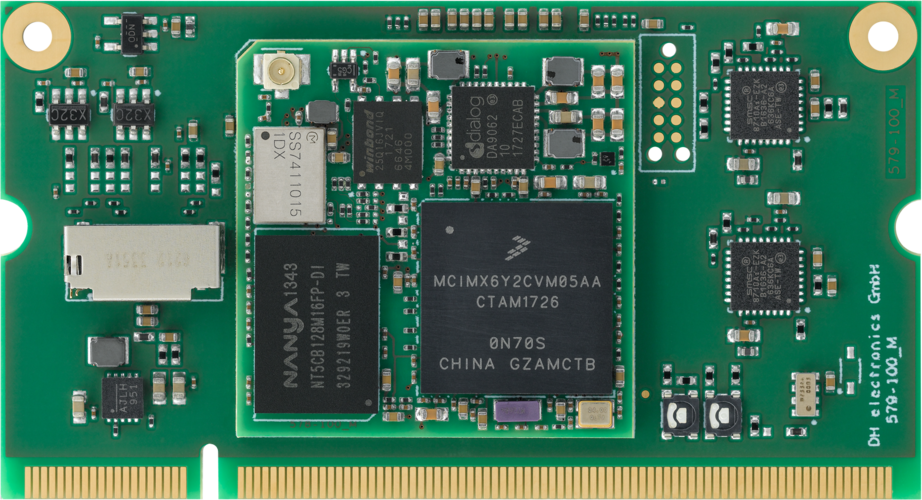

DHCOM i.MX6UL(L)

High performance, low power, low cost.

High performance with pre-certified Bluetooth and WiFi
Powerful ARM Cortex-A7 CPU from NXP with up to 900 MHz
Cost-effective and extremely energy-saving
Compatible with other modules from the DHCOM family (SODIMM-200 socket)

Possible Application

Request product

Technical Data

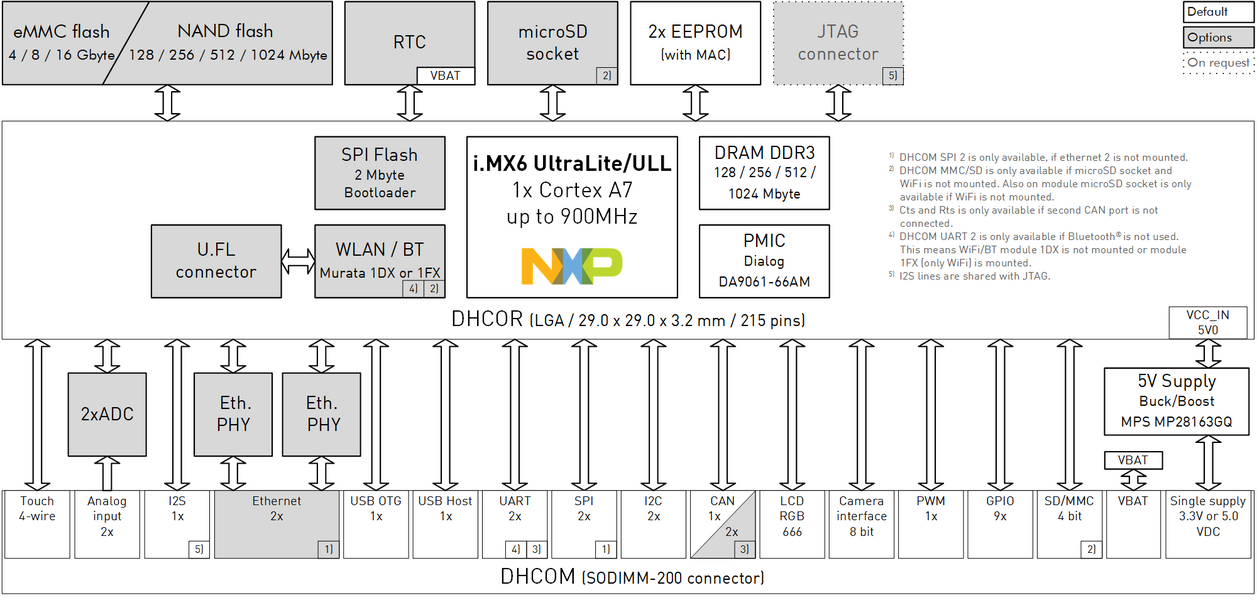

Block Diagrams
Configurations
Accessories

Board type

Pluggable SOM

5-Cent Cooling available

CPU details

1x ARM Cortex®-A7 up to 900 MHz

CPU vendor

NXP

CPU type

Cortex-A7

Co-processor available

Number of cores

tbd.

GPU available

DDR3 DRAM

128 / 256 / 512 / 1024 MB

SLC-NAND flash

128 / 256 / 512 / 1024 MB

eMMC flash

4 / 8 / 16 /32 GB GB

SPI NOR flash

2 MB

E2Prom

2x 256 Byte

microSD available

External RTC available

Bluetooth available

Bluetooth version

Bluetooth® v5.1 (BR/EDR/BLE), U.FL antenna connector

WiFi available

WiFi version

WiFi IEEE802.11b/g/n

BSP

Linux (Debian, Yocto)

Debug interface

JTAG interface on module

Power supply

3.3 or 5 VDC

Typ. power consumption

0.6 to 1.2 W

Operating temperature

-40 to +85 °C

Storage temperature

-40 to +85 °C

Dimensions

67.6 x 36.7 x 6.5 mm

SODIMM-200 socket

Bus interface

Dual Ethernet available

Ethernet 1

10 / 100 Mbit/s

Ethernet 2

10 / 100 Mbit/s

MMC/SD

MMC 4.5 / SD 3.0 / SDIO Port (1-/2-/4-bit)

CAN 1

1 Mbit/s

CAN 2

1 Mbit/s

UART 1

up to 5 Mbit/s

UART 2

Rx / Tx / Rts / Cts, up to 5 Mbit/s

UART 3

SPI 1

52 Mbit/s

SPI 2

52 Mbit/s

I2C 1

400 kbit

I2C 2

400 kbit

USB host 1

High-speed

USB host 2

USB OTG

High-speed

CSI (parallel camera)

8 Bit

Display RGB

18 Bit

Display LVDS

Touch

4-wire

I2S

Number of GPIOs

PWM output

1 PWM out, 16 Bit

Analog inputs

2 Analog in, 12 Bit ADC with 3.3 VDC reference voltage

Item Number	Model (other configurations on request)	Product description
HI00098	DHCM-iMX6ULL-C080-R051-F0409-SPI-E2-CAN2-RTC-WBT-ADC-I-01D2	DHCOM i.MX6ULL, 800 MHz, 215 MByte DRAM, 4096 MByte eMMC flash, 2 MByte SPI boot flash, 2x 100 Mbit ethernet, second CAN port available, RTC, WiFi and BT module, 2x ADC inputs, -40 to +85 °C, DHCOM revision, SODIMM200 socket
HI00099	DHCM-iMX6ULL-C080-R051-F0409-SPI-E2-CAN2-SD-RTC-ADC-I-01D2	DHCOM i.MX6ULL, 800 MHz, 512 MByte DRAM, 4096 MByte eMMC flash, 2 MByte SPI boot flash, 2x 100 Mbit ethernet, second CAN port available, microSD socket, RTC, 2x ADC inputs, -40 to +85 °C, DHCOM revision, SODIMM200 socket
HI00096	DHCM-iMX6ULL-C052-R025-F0012-SPI-E-SD-RTC-C-01D2	DHCOM i.MX6ULL, 528 MHz, 256 MByte DRAM, 128 MByte NAND, 2 MByte SPI boot flash, 1x 100 Mbit ethernet, microSD socket, RTC, 0 to +70 °C, DHCOM revision, SODIMM200 socket
HI00097	DHCM-iMX6ULL-C080-R051-F0409-SPI-E-CAN2-RTC-WBT-I-01D2	DHCOM i.MX6ULL, 800 MHz, 512 MByte DRAM, 4096 MByte eMMC flash, 2 MByte SPI boot flash, 1x 100 Mbit ethernet, second CAN port available, RTC, WiFi and BT module, -40 to +85 °C, DHCOM revision, SODIMM200 socket
HI00100	DHCM-iMX6ULL-C080-R051-F0409-SPI-E2-I-01D2	DHCOM i.MX6ULL, 800 MHz, 512 MByte DRAM, 4096 MByte eMMC flash, 2 MByte SPI boot flash, 2x 100 Mbit ethernet, -40 to +85 °C, DHCOM revision, SODIMM200 socket
FD00066	Premium Development Kit DHCOM STM32MP15	FD00034 Premium Development Kit FD00029 Cable Kit Premium Development Kit HI00098 DHCM-iMX6ULL-C080-R051-F0409-SPI-E2-CAN2-RTC-WBT-ADC-I-01D2 SD00025 microSD card with Linux Mainline Yocto FD00035 7'' Display with capacitive touch VV00038 Protection Case

* Other configurations on request

Image	Title	Description

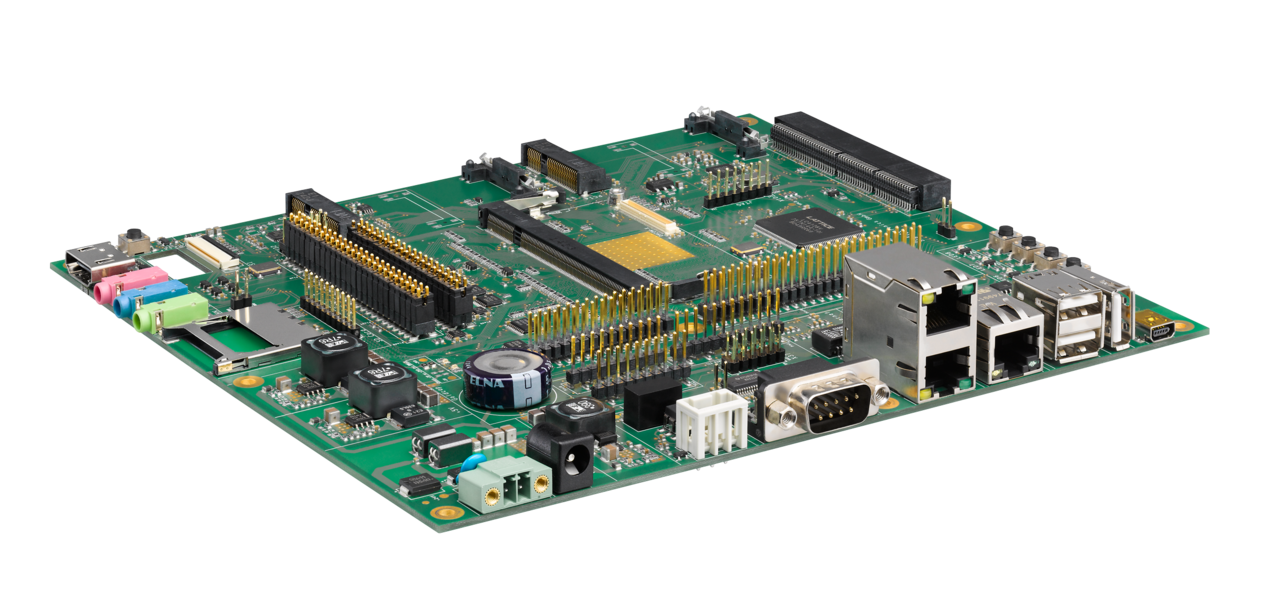

	Premium Development Kit	Premium Development Kit for all pluggable SOMs
	Cable Kit Premium Development Kit	Contains all necessary cables for Premium Development Kit
	7'' Display with capacitive touch	7'' RGB display for testing purposes
	microSD card with Linux Mainline Yocto	32 GByte microSD card

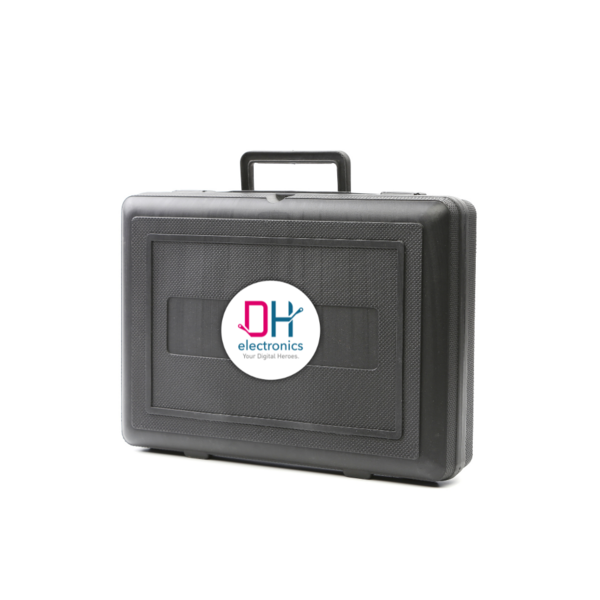

	Protection Case	Robust suitcase for storage and transportation

Downloads

	Name	Size
	Datasheet DHCOM i.MX6UL(L)	~ 5 MB
	User Manual DHCOM i.MX6UL(L)	619 KB

Related Links

Support

Board type

Pluggable SOM

5-Cent Cooling available

CPU details

1x ARM Cortex®-A7 up to 900 MHz

CPU vendor

NXP

CPU type

Cortex-A7

Co-processor available

Number of cores

tbd.

GPU available

DDR3 DRAM

128 / 256 / 512 / 1024 MB

SLC-NAND flash

128 / 256 / 512 / 1024 MB

eMMC flash

4 / 8 / 16 /32 GB GB

SPI NOR flash

2 MB

E2Prom

2x 256 Byte

microSD available

External RTC available

Bluetooth available

Bluetooth version

Bluetooth® v5.1 (BR/EDR/BLE), U.FL antenna connector

WiFi available

WiFi version

WiFi IEEE802.11b/g/n

BSP

Linux (Debian, Yocto)

Debug interface

JTAG interface on module

Power supply

3.3 or 5 VDC

Typ. power consumption

0.6 to 1.2 W

Operating temperature

-40 to +85 °C

Storage temperature

-40 to +85 °C

Dimensions

67.6 x 36.7 x 6.5 mm

SODIMM-200 socket

Bus interface

Dual Ethernet available

Ethernet 1

10 / 100 Mbit/s

Ethernet 2

10 / 100 Mbit/s

MMC/SD

MMC 4.5 / SD 3.0 / SDIO Port (1-/2-/4-bit)

CAN 1

1 Mbit/s

CAN 2

1 Mbit/s

UART 1

up to 5 Mbit/s

UART 2

Rx / Tx / Rts / Cts, up to 5 Mbit/s

UART 3

SPI 1

52 Mbit/s

SPI 2

52 Mbit/s

I2C 1

400 kbit

I2C 2

400 kbit

USB host 1

High-speed

USB host 2

USB OTG

High-speed

CSI (parallel camera)

8 Bit

Display RGB

18 Bit

Display LVDS

Touch

4-wire

I2S

Number of GPIOs

PWM output

1 PWM out, 16 Bit

Analog inputs

2 Analog in, 12 Bit ADC with 3.3 VDC reference voltage

Item Number	Model (other configurations on request)	Product description
HI00098	DHCM-iMX6ULL-C080-R051-F0409-SPI-E2-CAN2-RTC-WBT-ADC-I-01D2	DHCOM i.MX6ULL, 800 MHz, 215 MByte DRAM, 4096 MByte eMMC flash, 2 MByte SPI boot flash, 2x 100 Mbit ethernet, second CAN port available, RTC, WiFi and BT module, 2x ADC inputs, -40 to +85 °C, DHCOM revision, SODIMM200 socket
HI00099	DHCM-iMX6ULL-C080-R051-F0409-SPI-E2-CAN2-SD-RTC-ADC-I-01D2	DHCOM i.MX6ULL, 800 MHz, 512 MByte DRAM, 4096 MByte eMMC flash, 2 MByte SPI boot flash, 2x 100 Mbit ethernet, second CAN port available, microSD socket, RTC, 2x ADC inputs, -40 to +85 °C, DHCOM revision, SODIMM200 socket
HI00096	DHCM-iMX6ULL-C052-R025-F0012-SPI-E-SD-RTC-C-01D2	DHCOM i.MX6ULL, 528 MHz, 256 MByte DRAM, 128 MByte NAND, 2 MByte SPI boot flash, 1x 100 Mbit ethernet, microSD socket, RTC, 0 to +70 °C, DHCOM revision, SODIMM200 socket
HI00097	DHCM-iMX6ULL-C080-R051-F0409-SPI-E-CAN2-RTC-WBT-I-01D2	DHCOM i.MX6ULL, 800 MHz, 512 MByte DRAM, 4096 MByte eMMC flash, 2 MByte SPI boot flash, 1x 100 Mbit ethernet, second CAN port available, RTC, WiFi and BT module, -40 to +85 °C, DHCOM revision, SODIMM200 socket
HI00100	DHCM-iMX6ULL-C080-R051-F0409-SPI-E2-I-01D2	DHCOM i.MX6ULL, 800 MHz, 512 MByte DRAM, 4096 MByte eMMC flash, 2 MByte SPI boot flash, 2x 100 Mbit ethernet, -40 to +85 °C, DHCOM revision, SODIMM200 socket
FD00066	Premium Development Kit DHCOM STM32MP15	FD00034 Premium Development Kit FD00029 Cable Kit Premium Development Kit HI00098 DHCM-iMX6ULL-C080-R051-F0409-SPI-E2-CAN2-RTC-WBT-ADC-I-01D2 SD00025 microSD card with Linux Mainline Yocto FD00035 7'' Display with capacitive touch VV00038 Protection Case

* Other configurations on request

Image	Title	Description
	Premium Development Kit	Premium Development Kit for all pluggable SOMs
	Cable Kit Premium Development Kit	Contains all necessary cables for Premium Development Kit
	7'' Display with capacitive touch	7'' RGB display for testing purposes
	microSD card with Linux Mainline Yocto	32 GByte microSD card
	Protection Case	Robust suitcase for storage and transportation

	Name	Size
	Datasheet DHCOM i.MX6UL(L)	~ 5 MB
	User Manual DHCOM i.MX6UL(L)	619 KB
