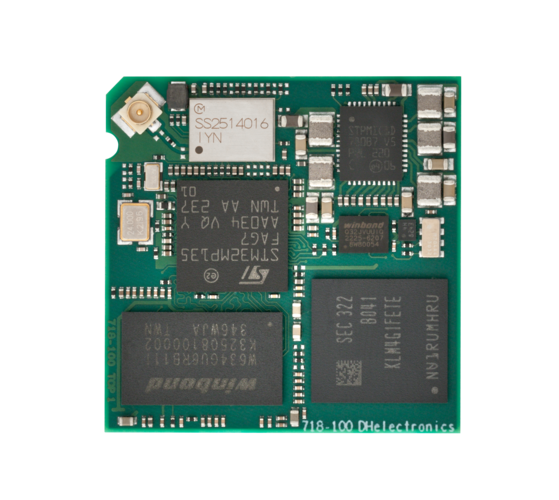

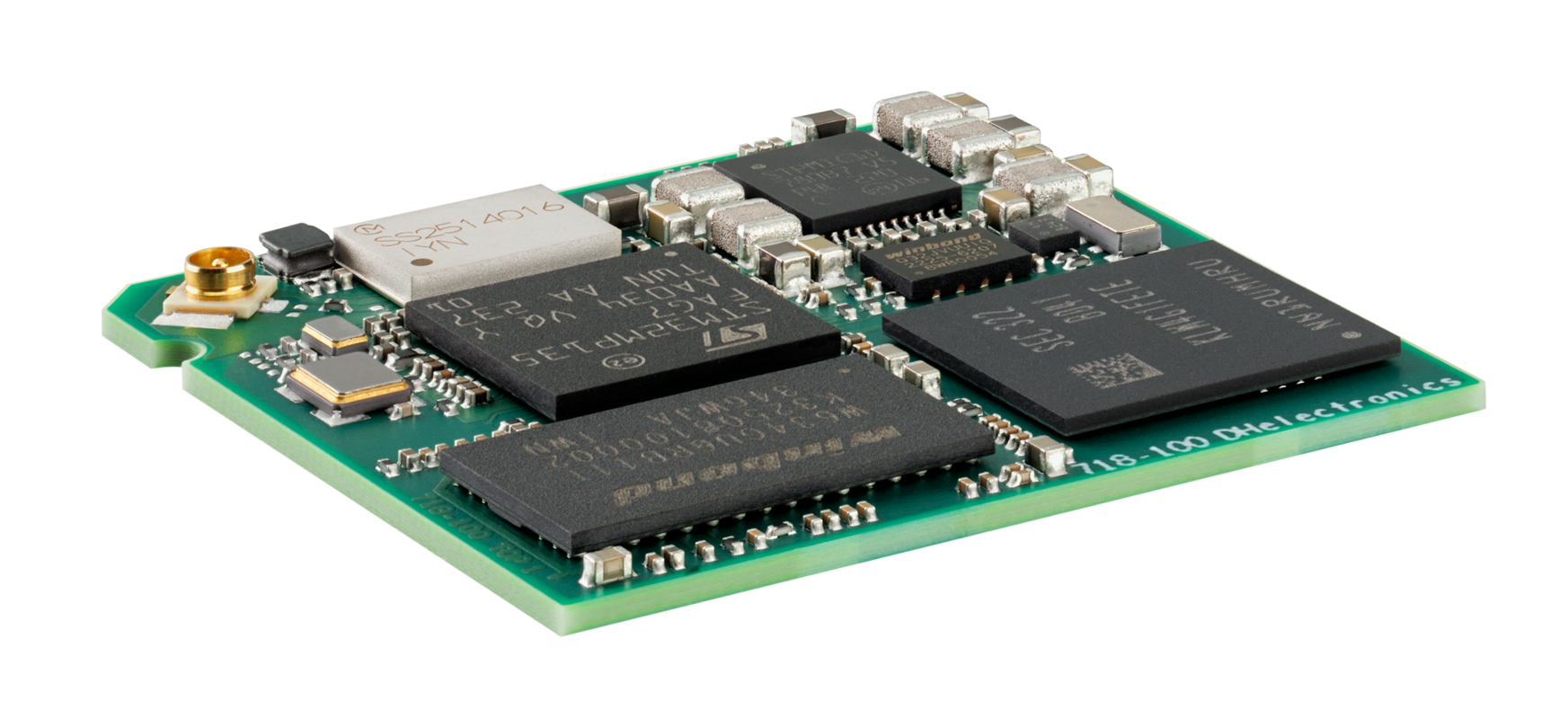

DHCOR STM32MP13

NEW

Based on MPU from STM32MP1 family

  • Solderable SOM with only 29 x 29 x 3.2 mm
  • Highlights: DDR3L, eMMC, SPI boot flash, WiFi/BT, Dual GB Ethernet, Dual CAN-FD
  • Extended security features (Secure Boot)
  • All SoC features are available on mainboard
  • STPMIC1 supports low power modes
  • Mainline Linux support
  • Guaranteed long-term availability of 10+ years
Possible Application
Automation
Metrology
eMobility
Engineering
Health

Board type

Solderable SOM

5-Cent Cooling available

No

CPU details

1x ARM Cortex-A7 up to 1 GHz

CPU vendor

ST

CPU type

Cortex-A7

Co-processor available

No

Number of cores

1

GPU available

No

PMIC

STPMIC1D

Security

Crypto Engine, Secure Boot | 3072-bit fuses including 96-bit unique ID, up to 1280 bits available for user and 256-bit HUK to protect AES 256 keys | Hardware acceleration: AES 128, 192, 256 DES/TDES | AES 128, 256 with DPA protection | PKA ECC/RSA with DPA protection | AES 128 on-the-fly DRAM encryption and decryption | HASH (SHA-1, SHA-224, SHA- 256, SHA-384, SHA-512, SHA-3), HMAC | 1 x true random number generator (6 triple oscillators) | 1 x CRC calculation unit

DDR3L DRAM

128 / 256 / 512 / 1024 MB

eMMC flash

4 / 8 / 16 GB

SPI NOR flash

4 MB

Bluetooth available

Yes

Bluetooth version

Bluetooth® v5.2

WiFi available

Yes

WiFi version

Single band 802.11b/g/n

BSP

Linux Yocto (Debian on request)

Power supply

5.0 VDC

Typ. power consumption

1.0 W

Operating temperature

-40 to +85 °C

Storage temperature

-40 to +85 °C

Dimensions

29.0 x 29.0 x 3.2 mm

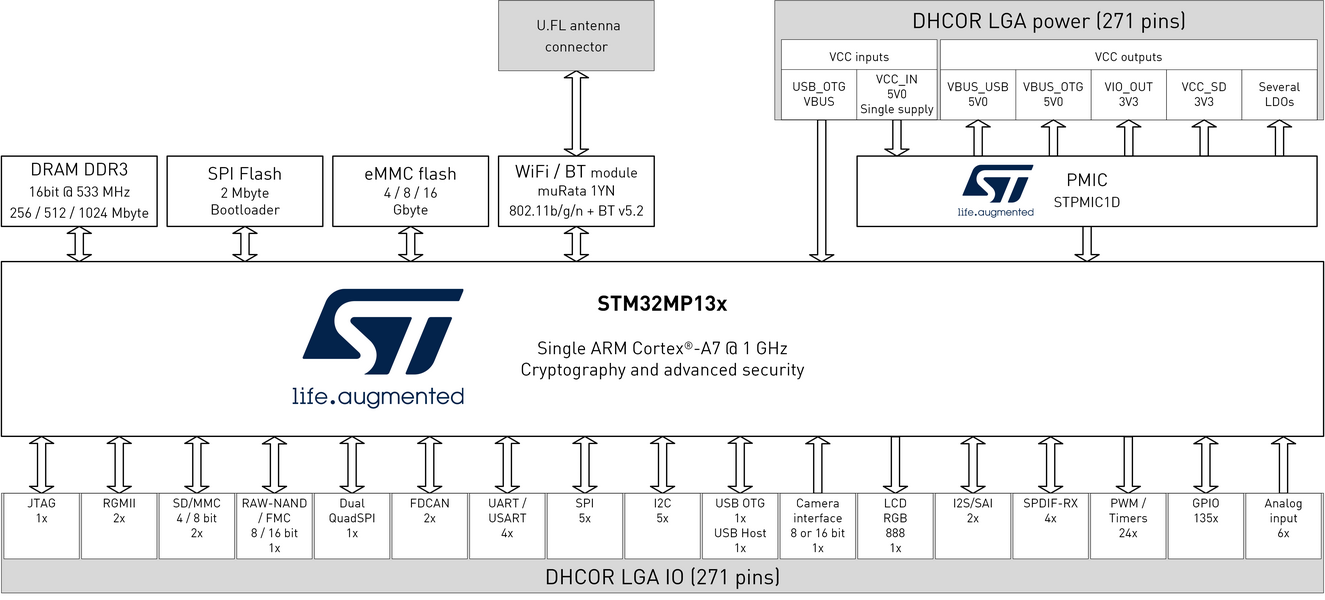

Available interfaces for LGA (271 pins)

Bus interface

8 / 16 Bit

Ethernet

2x Gbit, IEEE 1588v2, MII/RMII/RGMII

MMC/SD

2x SDMMC up to 8 bits (SD/eMMC™/SDIO)

NAND

8 / 16 Bit interface Raw MLC / SLC, 8 Bit ECC

Quad SPI

Dual Quad SPI

CAN

2x FDCAN / 1x TTCAN

UART

4x UART, 4x USART up to 12.5 Mbit/s

SPI

5x up to 50 Mbit/s

I2C

5x up to 1 Mbit/s

USB host

1x USB 2.0 High-speed Host

USB OTG

1x USB 2.0 High-speed OTG

Embedded USB PHYs

2 × HS shared between Host and OTG

CSI (parallel camera)

8- to 16-bit camera interface, 3 Mpix @30 fps or 5Mpix @15 fps in color or monochrome with pixel clock @120 MHz (max freq)

Display RGB

24 Bit | up to WXGA (1366 × 768) @60 fps or up to Full HD (1920 x 1080) @ 30 fps | pixel clock up to 90 MHz Bit

ADC

2 × ADCs with 12-bit max. resolution up to 5 Msps | 1 x digital filter for sigma-delta modulator (DFSDM) with 4 channels and 2 filters | Internal or external ADC reference VREF+

SPDIF

2x Tx, 4x Rx

Temperature sensor

1x

I2S / SAI

2x

Number of GPIOs

135

PWM / Timer

Up to 24 timers, 2 watchdogs and PWM | 2 × 32-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input | 2 × 16-bit advanced timers | 10 × 16-bit general-purpose timers (including 2 basic timers without PWM) | 5 × 16-bit low-power timers | Secure RTC with sub-second accuracy and hardware calendar | 4 Cortex®-A7 system timers (secure, non-secure, virtual, hypervisor) | 2 × independent watchdogs

Debug interface

JTAG interface

The DHCOR STM32MP13 from the STM32MP1 family is a 29 x 29 x 3.2mm postage stamp sized solderable system on module enabling low cost, automated assembly and advanced safety features. The STM32MP13 microprocessor targets applications in Industry 4.0, factory automation, smart metering, smart home, electric vehicle charging infrastructure and point of sales (PoS). It is based on a single arm Cortex-A7 core running at up to 1 GHz and features a variety of connectivity options, eMMC and SPI boot flash, WiFi, Bluetooth, and supports Dual GB Ethernet and Dual CAN-FD. In addition, the STPMIC1 enables low-power modes and powers USB 2.0 host and USB OTG as well as the entire motherboard with 5.0 VDC. In addition, all SoC are available on the mainboard. For this cost and power efficient SOM with mainline Linux, DH electronics guarantees a long-term availability of 10+ years.

STM32-based DHSOMs

Board type

Solderable SOM

5-Cent Cooling available

No

CPU details

1x ARM Cortex-A7 up to 1 GHz

CPU vendor

ST

CPU type

Cortex-A7

Co-processor available

No

Number of cores

1

GPU available

No

PMIC

STPMIC1D

Security

Crypto Engine, Secure Boot | 3072-bit fuses including 96-bit unique ID, up to 1280 bits available for user and 256-bit HUK to protect AES 256 keys | Hardware acceleration: AES 128, 192, 256 DES/TDES | AES 128, 256 with DPA protection | PKA ECC/RSA with DPA protection | AES 128 on-the-fly DRAM encryption and decryption | HASH (SHA-1, SHA-224, SHA- 256, SHA-384, SHA-512, SHA-3), HMAC | 1 x true random number generator (6 triple oscillators) | 1 x CRC calculation unit

DDR3L DRAM

128 / 256 / 512 / 1024 MB

eMMC flash

4 / 8 / 16 GB

SPI NOR flash

4 MB

Bluetooth available

Yes

Bluetooth version

Bluetooth® v5.2

WiFi available

Yes

WiFi version

Single band 802.11b/g/n

BSP

Linux Yocto (Debian on request)

Power supply

5.0 VDC

Typ. power consumption

1.0 W

Operating temperature

-40 to +85 °C

Storage temperature

-40 to +85 °C

Dimensions

29.0 x 29.0 x 3.2 mm

Available interfaces for LGA (271 pins)

Bus interface

8 / 16 Bit

Ethernet

2x Gbit, IEEE 1588v2, MII/RMII/RGMII

MMC/SD

2x SDMMC up to 8 bits (SD/eMMC™/SDIO)

NAND

8 / 16 Bit interface Raw MLC / SLC, 8 Bit ECC

Quad SPI

Dual Quad SPI

CAN

2x FDCAN / 1x TTCAN

UART

4x UART, 4x USART up to 12.5 Mbit/s

SPI

5x up to 50 Mbit/s

I2C

5x up to 1 Mbit/s

USB host

1x USB 2.0 High-speed Host

USB OTG

1x USB 2.0 High-speed OTG

Embedded USB PHYs

2 × HS shared between Host and OTG

CSI (parallel camera)

8- to 16-bit camera interface, 3 Mpix @30 fps or 5Mpix @15 fps in color or monochrome with pixel clock @120 MHz (max freq)

Display RGB

24 Bit | up to WXGA (1366 × 768) @60 fps or up to Full HD (1920 x 1080) @ 30 fps | pixel clock up to 90 MHz Bit

ADC

2 × ADCs with 12-bit max. resolution up to 5 Msps | 1 x digital filter for sigma-delta modulator (DFSDM) with 4 channels and 2 filters | Internal or external ADC reference VREF+

SPDIF

2x Tx, 4x Rx

Temperature sensor

1x

I2S / SAI

2x

Number of GPIOs

135

PWM / Timer

Up to 24 timers, 2 watchdogs and PWM | 2 × 32-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input | 2 × 16-bit advanced timers | 10 × 16-bit general-purpose timers (including 2 basic timers without PWM) | 5 × 16-bit low-power timers | Secure RTC with sub-second accuracy and hardware calendar | 4 Cortex®-A7 system timers (secure, non-secure, virtual, hypervisor) | 2 × independent watchdogs

Debug interface

JTAG interface

Item Number Model (other configurations on request) Product description
HS00033 DHCR-STM32MP135F-C100-R051-EE-F0409-SPI4-WBT-RTC-I-01LG DHCOR STM32MP135F, 1 GHz, 512 MByte RAM, 256 kbit EEPROM, 4096 Mbyte eMMC, 2 MB SPI boot flash, WiFi and Bluetooth® via Murata 1YN module with U.FL connector, temp. compensated Real Time Clock, -40 to +85 °C, DHCOR revision, LGA connection
HS00036 DHCR-STM32MP135F-C100-R051-EE-F0409-SPI4-RTC-I-01LG DHCOR STM32MP135F, 1 GHz, 512 MByte RAM, 256 kbit EEPROM, 4096 Mbyte eMMC, 2 MB SPI boot flash, temp. compensated Real Time Clock, -40 to +85 °C, DHCOR revision, LGA connection
HS00037 DHCR-STM32MP131C-C065-R025-EE-F0409-SPI4-I-01LG DHCOR STM32MP131C, 650 MHz, 256 MByte RAM, 256 kbit EEPROM, 4096 Mbyte eMMC, 2 MB SPI boot flash, -40 to +85 °C, DHCOR revision, LGA connection
* Other configurations on request
What is the model number for ordering? DHCR-CPU-Cxxx-Rxxx-EE[-Fxxxx][-SPI][-RTC][-WBT]-X-01LG
CPU STM32MP135F: Single Cortex®-A7 with 1 GHz, HW Crypto, Display + Camera, FDCAN, 2x Ethernet, 2x ADC
STM32MP135C: Single Cortex®-A7 with 650 MHz, HW Crypto, Display + Camera, FDCAN, 2x Ethernet, 2x ADC
STM32MP131C: Single Cortex®-A7 with 650 MHz, HW Crypto, 1x Ethernet, 1x ADC
(Please contact us for other options like STM32MP133)
Cxxx 650 MHz: C065, 1 GHz: C100
Rxxx 128 Mbyte: R012, 256 Mbyte: R025, 512 Mbyte: R051, 1024 Mbyte: R102
EE 256 kbit EEPROM
X

Commercial temperature range (0 °C - 70 °C): C, Industrial temperature range (-40 °C - 85 °C): I (only -30 - 70 °C with option WBT)

Note: Industrial temp. range for eMMC version is -25 °C - 85 °C. Please contact us for -40 °C - 85 °C version.

01LG DHCOR Revision, LGA connection
Options
[-Fxxxx] 4096 Mbyte eMMC: F0409, 8192 Mbyte eMMC: F0819, 16384 Mbyte eMMC: F1638
[-SPI4] 4 Mbyte SPI boot flash
[-RTC] Low power temperature compensated real time clock (instead of CPU internal RTC)
[-WBT] WiFi and Bluetooth® via Murata 1YN module with U.FL connector: WBT

The DHCOR STM32MP13 from the STM32MP1 family is a 29 x 29 x 3.2mm postage stamp sized solderable system on module enabling low cost, automated assembly and advanced safety features. The STM32MP13 microprocessor targets applications in Industry 4.0, factory automation, smart metering, smart home, electric vehicle charging infrastructure and point of sales (PoS). It is based on a single arm Cortex-A7 core running at up to 1 GHz and features a variety of connectivity options, eMMC and SPI boot flash, WiFi, Bluetooth, and supports Dual GB Ethernet and Dual CAN-FD. In addition, the STPMIC1 enables low-power modes and powers USB 2.0 host and USB OTG as well as the entire motherboard with 5.0 VDC. In addition, all SoC are available on the mainboard. For this cost and power efficient SOM with mainline Linux, DH electronics guarantees a long-term availability of 10+ years.
