• Avenger96 based on the DHCOR STM32MP1
  • 2x ARM® Cortex-A7 @ 650 MHz
  • 1x ARM® Cortex-M4 @ 209 MHz
  • 3D GPU @ 533 MHz - OpenGL® ES 2.0
  • DDR3 32 bit @ 533 MHz
  • 16 bit motor control PWM synchronized AC timer
  • 12 bit DAC
  • 16 bit ADC

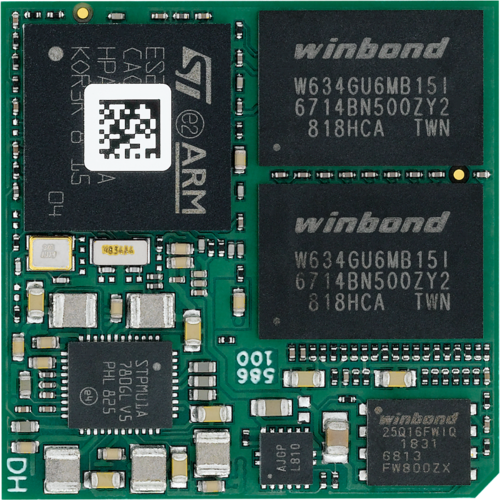

Product Details

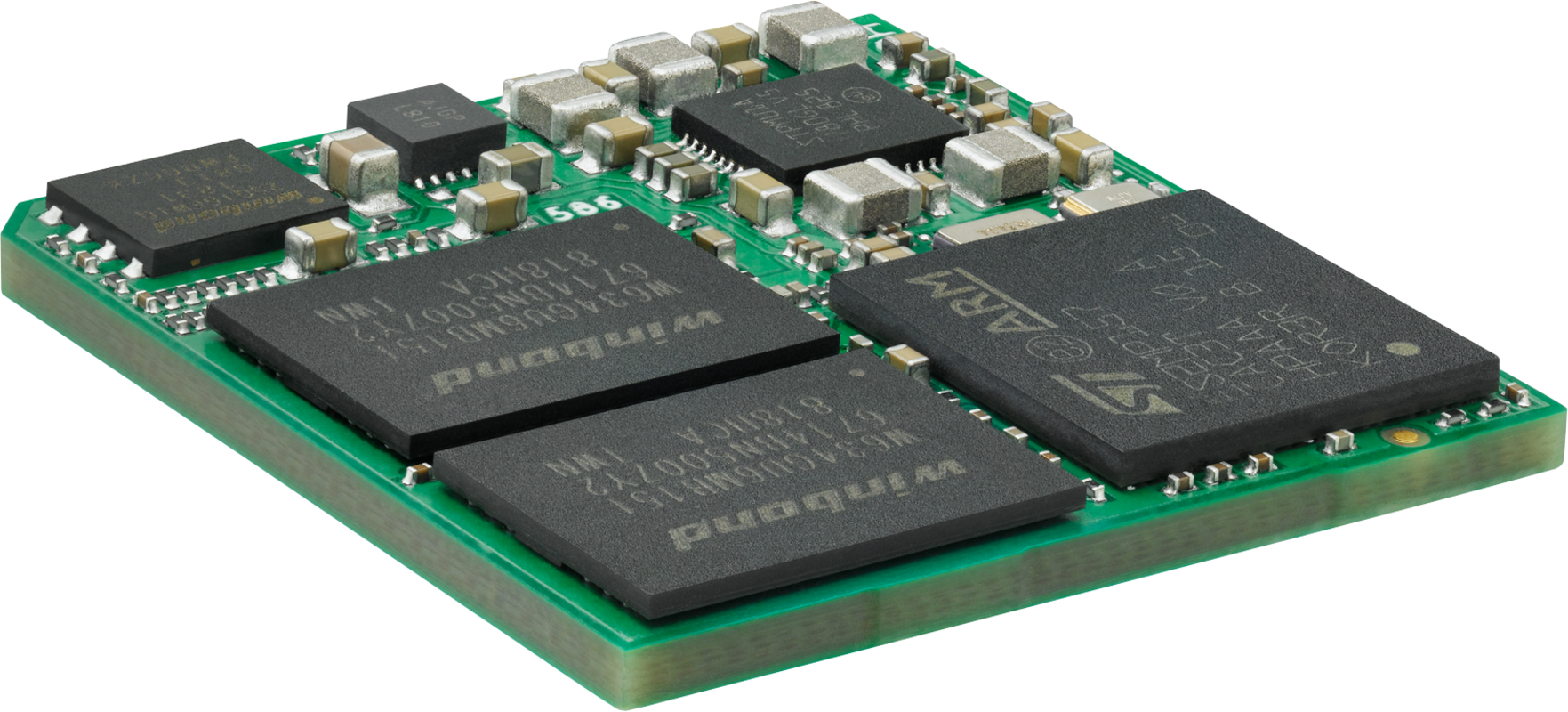

The module from the STM32MP1 family is the second SOM in our solderable computer module series with a size of 29 x 29 mm². The space-saving module increases operational safety through direct soldering and saves space and cost-intensive board-to-board connectors. The DHCOR STM32MP1 can be equipped with processors of the new STM32MP1 series and combines an ARM Cortex-M4 processor (209 MHz) with one or two ARM Cortex-A7 cores (650 MHz).

On the module from the STM32MP1 family are many embedded interfaces such as two 16 bit ADCs, 12 bit DACs, PWM/Timer, 148 GPIO, UART, SPI, RTC, up to 2x FD CAN and standard features like I2S, I2C, Gbit Ethernet , 8, 10 or 14 bit camera interface, SD/MMC and one each USB 2.0 High Speed ​​OTG and host port. The display interface is an 24 bit RGB or Mipi-DSI connection with HD resolution (1366 x 768 pixels). The optional integrated Vivante 3D GPU runs at up to 533 MHz clock speed, supports Open GL ES 2.0. and enables powerful graphical user interfaces.

The DHCOR STM32MP1 is perfectly suited for many fields of application and sets itself apart from the masses with its diverse analogue and digital capabilities. The STM32MP1 microprocessors enable powerful IoT and/or HMI applications from sensors and actuators to the cloud with just one chip.


  • IoT, Edge and Sensor Devices
  • Smart home and smart building (building automation)
  • Smart Energy
  • Smart City
  • Security and access control

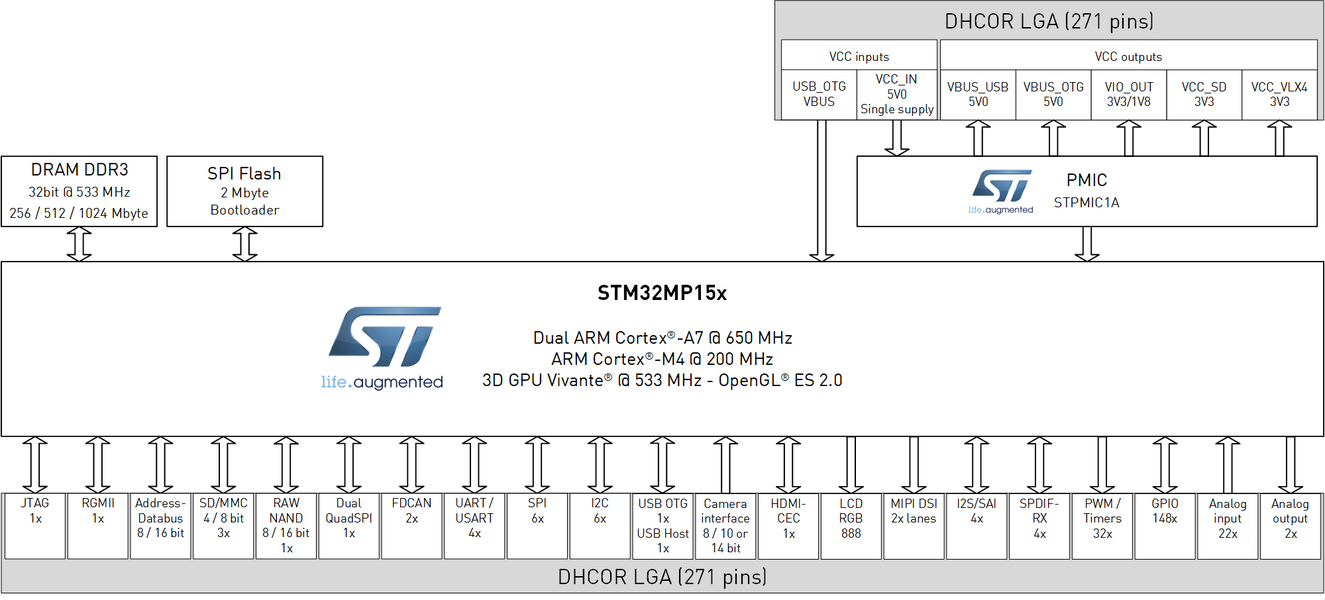

ProcessorsDual ARM Cortex-A7® up to 800 MHz, Single ARM Cortex®-M4 up to 209 MHz
Features3D GPU OpenGL ES2.0 up to 533 MHz - Absolute power efficient and cost optimized application processor
SecurityCryptographic acceleration, secure boot
DDR3 DRAM256 / 512 / 1024 Mbyte (32 bit)
SPI NOR flash2 Mbyte boot flash
Power ManagementSTPMIC1A
Supply5.0 VDC / typ. 1 W
Temperature range-40 to +85 °C operating
Dimensions29.0 x 29.0 x 3.2 mm
BSPsLinux (Debian and Yocto support)

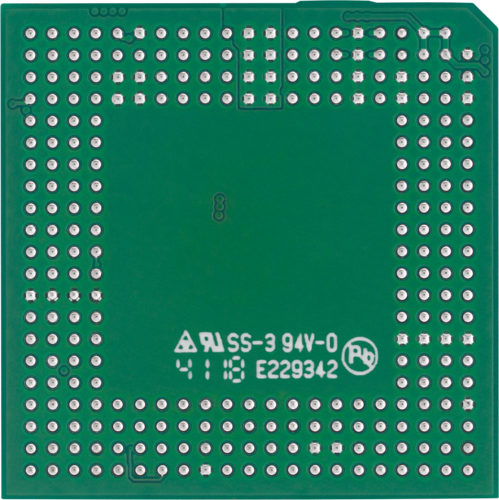

Available interfaces on LGA (271 pins)
Bus interface8 / 16 bit address / data
Ethernet1x Gbit, IEEE 1588, 1x MDIO
MMC / SD3x SDIO 3.0 / SD 3.0 / eMMC 4.51
NAND8 / 16 bit interface Raw MLC / SLC, 8 bit ECC
Quad SPIDual Quad SPI
UART4x UART, 4x USART up to 12.5 Mbit/s
SPI6x up to 50 Mbit/s
USB Host2x USB 2.0 HS
Embedded USB PHYs2x HS + 1x FS
CSI (parallel camera)1x 8, 10 or 14 bit / pixel data format
Display RGBMax. 1366 x 768 pixels, 24 bit
MIPI®-DSI2x data lanes (max. 1366 x 768 pixels)
ADC2x 16-bit synchronized / up to 22 channels
DAC2x 12-bit
ADC / DAC VREFInternal 1.5 V, 1.8 V, 2.048 V, 2.5 V or VREF+ input
Temperature sensor1x
SPDIF4x Tx and Rx
I2S / SAI4x
PWM / Timer2x 16 bit motor control PWM synchronized AC timer, 10x 16 bit timer, 5x 16 bit LP timer, 2x 32 bit timer
DFSDM1x with 8 channels / 6 filters
Debug interfaceJTAG interface
