IoT Gateway DRC Compact

NEW
IoT Gateway DRC Compact
IoT Gateway DRC Compact
IoT Gateway DRC Compact
NEW

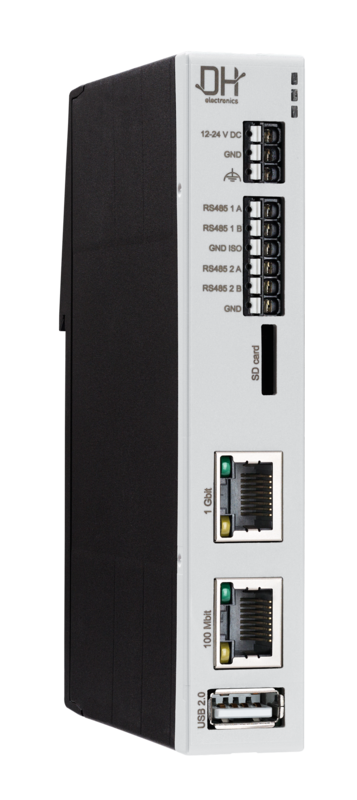

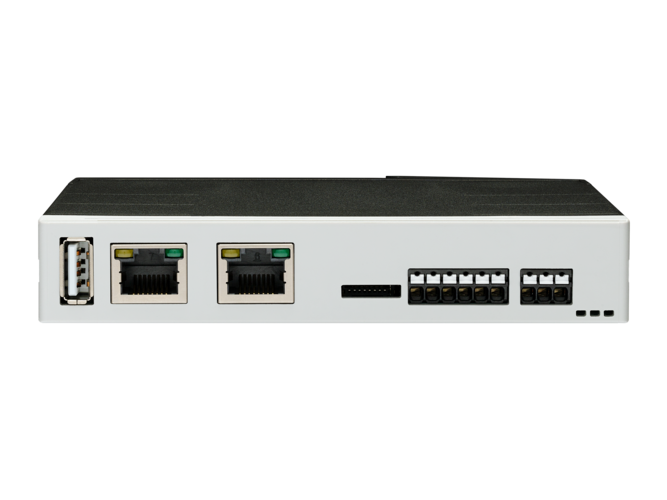

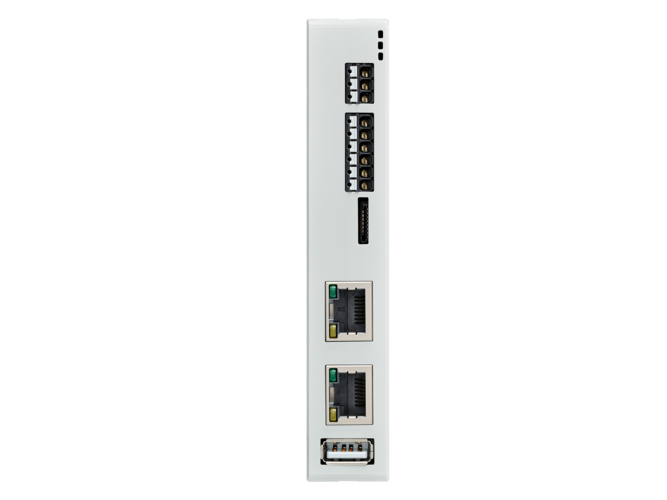

Connects sensors, IoT modules and sensors to the cloud

  • Based on the STM32MP1 DHCOR, the DRC Compact represents a cost-effective and perfomant unit
  • DIN Rail Controller (DRC) connects sensors, IoT modules and smart devices to the cloud
  • Allows data filtering, visualization and complex analysis
  • Features all common network and industrial interfaces such as RS485, RS232, CAN, Ethernet, USB, WiFi and BT
  • Mainline Linux support for Yocto project (Debian on request)
  • Guaranteed long-term availability of 10+ years
Possible Application
Automation
Engineering
Request product
CPU details

CPU name

STM32MP15

CPU type

Dual Cortex-A7 and Cortex-M4

CPU clock

up to 800 MHz and up to 209 MHz

BSP

Linux (Debian, Yocto)

Interfaces

Ethernet

1x 10 / 100
1x 10 / 100 / 1000 Mbit/s

USB host

1x High-speed

Serial interfaces

1x RS485 isolated, 1x RS232 or RS485
1x Debug UART internal

Micro SD

4-bit micro SD card

CAN

1x CAN (up to 1 MBaud)

HMI

LEDs

3x status

Physical

Dimensions

128 x 17.5 x 94.2 mm

Weight

120 g

Power supply

10.8 to 26.4 VDC

Battery for RTC

CR2032 (optional)

Typ. power consumption

3.0 W

Operating temperature

0 to +50 °C

Storage temperature

-20 to +70 °C

Certifications

EN 61131 | EN 61000-6-2 | EN 61000-6-3

IP protection

IP30

Item Number Model (other configurations on request) Product description
FD00064 DHCON-DRC-C-SA-S-STM32MP153C-R051-F0819-RS485-E2-uSD-RTC[B]-C-01 DHCON DRC Compact, stand alone, standard print, STM32MP153C, 512MByte RAM, 8192MByte eMMC, second RS485. second Ethernet port, uSD card socket, battery puffered RTC, 0 to +50°C, revision 01
FD00073 DHCON-DRC-C-SA-S-STM32MP153C-R051-F0819-RS232-E2-uSD-RTC[B]-C-01 DHCON DRC Compact, stand alone, standard print, STM32MP153C, 512MByte RAM, 8192MByte eMMC, RS232. second Ethernet port, uSD card socket, battery puffered RTC, 0 to +50°C, revision 01
FD00074 DHCON-DRC-C-SA-S-STM32MP153C-R051-F0819-CAN-E2-uSD-RTC[B]-C-01 DHCON DRC Compact, stand alone, standard print, STM32MP153C, 512MByte RAM, 8192MByte eMMC, CAN. second Ethernet port, uSD card socket, battery puffered RTC, 0 to +50°C, revision 01
* Other configurations on request
What is the model number for ordering? DHCON-TYPE-HO-PANEL[-CPU][-Rxxx][-Fxxxx][SERIAL][-E[x]x][-uSD][-RTC[x]][-W][BT]-X-01
TYPEDRC0x, DRC-X-[MODULE], DRC-C
HOSA: stand alone, OF: open frame
PANELS: standard printing on panel, N: no printing on panel
XC: commercial temperature range (0 °C to 50 °C), E: extended commercial temperature range (-20 °C to 70 °C)
01Revision 01
Options
[-CPU]STM32MP151A, STM32MP153C, STM32MP157A, STM32MP157C, ...
[-Rxxx]RAM memory size in 10 MB steps: i.e. R006 = 64 MB, R012 = 128 MB
[-Fxxxx]Flash memory size in 10 MB steps: i.e. F0006 = 64 MB, F0012 = 128 MB
[-SERIAL]CAN: CAN Bus, RS485: RS485 Bus, RS232: RS232
[-E[x]]Ethernet [2]U: 2nd Ethernet 100MBit Ethernet port
[-uSD]MicroSD-Card socket
[-RTC[x]]RTC[B]: Battery
[-W][BT]WiFi & BT

The IoT Gateway DRC Compact is based on the DHCOR STM32MP1 from STMicroelectronics which enables multiple flexible applications and easy development. The Cortex-A7 core provides access to open source operating systems, and the Cortex-M4 core leverages the STM32 MCU ecosystem. The DRC Compact is at the heart of all industrial Internet of Things applications and provides a low-cost but high-performance unit. It connects sensors, IoT modules and smart devices to the cloud, allowing data filtering, visualization and complex analytics. The DRC Compact has all common network and industrial interfaces and is optionally available with WiFi and Bluetooth connectivity. Possible areas of application for the IoT Gateway DRC Compact are building automation as well as plant and machine construction.

Downloads
  Name Size
Datasheet IoT Gateway DRC Compact ~ 5 MB
User Manual IoT Gateway DRC Compact User Manual IoT Gateway DRC Compact 656 KB

CPU details

CPU name

STM32MP15

CPU type

Dual Cortex-A7 and Cortex-M4

CPU clock

up to 800 MHz and up to 209 MHz

BSP

Linux (Debian, Yocto)

Interfaces

Ethernet

1x 10 / 100
1x 10 / 100 / 1000 Mbit/s

USB host

1x High-speed

Serial interfaces

1x RS485 isolated, 1x RS232 or RS485
1x Debug UART internal

Micro SD

4-bit micro SD card

CAN

1x CAN (up to 1 MBaud)

HMI

LEDs

3x status

Physical

Dimensions

128 x 17.5 x 94.2 mm

Weight

120 g

Power supply

10.8 to 26.4 VDC

Battery for RTC

CR2032 (optional)

Typ. power consumption

3.0 W

Operating temperature

0 to +50 °C

Storage temperature

-20 to +70 °C

Certifications

EN 61131 | EN 61000-6-2 | EN 61000-6-3

IP protection

IP30

Item Number Model (other configurations on request) Product description
FD00064 DHCON-DRC-C-SA-S-STM32MP153C-R051-F0819-RS485-E2-uSD-RTC[B]-C-01 DHCON DRC Compact, stand alone, standard print, STM32MP153C, 512MByte RAM, 8192MByte eMMC, second RS485. second Ethernet port, uSD card socket, battery puffered RTC, 0 to +50°C, revision 01
FD00073 DHCON-DRC-C-SA-S-STM32MP153C-R051-F0819-RS232-E2-uSD-RTC[B]-C-01 DHCON DRC Compact, stand alone, standard print, STM32MP153C, 512MByte RAM, 8192MByte eMMC, RS232. second Ethernet port, uSD card socket, battery puffered RTC, 0 to +50°C, revision 01
FD00074 DHCON-DRC-C-SA-S-STM32MP153C-R051-F0819-CAN-E2-uSD-RTC[B]-C-01 DHCON DRC Compact, stand alone, standard print, STM32MP153C, 512MByte RAM, 8192MByte eMMC, CAN. second Ethernet port, uSD card socket, battery puffered RTC, 0 to +50°C, revision 01
* Other configurations on request
What is the model number for ordering? DHCON-TYPE-HO-PANEL[-CPU][-Rxxx][-Fxxxx][SERIAL][-E[x]x][-uSD][-RTC[x]][-W][BT]-X-01
TYPEDRC0x, DRC-X-[MODULE], DRC-C
HOSA: stand alone, OF: open frame
PANELS: standard printing on panel, N: no printing on panel
XC: commercial temperature range (0 °C to 50 °C), E: extended commercial temperature range (-20 °C to 70 °C)
01Revision 01
Options
[-CPU]STM32MP151A, STM32MP153C, STM32MP157A, STM32MP157C, ...
[-Rxxx]RAM memory size in 10 MB steps: i.e. R006 = 64 MB, R012 = 128 MB
[-Fxxxx]Flash memory size in 10 MB steps: i.e. F0006 = 64 MB, F0012 = 128 MB
[-SERIAL]CAN: CAN Bus, RS485: RS485 Bus, RS232: RS232
[-E[x]]Ethernet [2]U: 2nd Ethernet 100MBit Ethernet port
[-uSD]MicroSD-Card socket
[-RTC[x]]RTC[B]: Battery
[-W][BT]WiFi & BT

The IoT Gateway DRC Compact is based on the DHCOR STM32MP1 from STMicroelectronics which enables multiple flexible applications and easy development. The Cortex-A7 core provides access to open source operating systems, and the Cortex-M4 core leverages the STM32 MCU ecosystem. The DRC Compact is at the heart of all industrial Internet of Things applications and provides a low-cost but high-performance unit. It connects sensors, IoT modules and smart devices to the cloud, allowing data filtering, visualization and complex analytics. The DRC Compact has all common network and industrial interfaces and is optionally available with WiFi and Bluetooth connectivity. Possible areas of application for the IoT Gateway DRC Compact are building automation as well as plant and machine construction.

  Name Size
Datasheet IoT Gateway DRC Compact ~ 5 MB
User Manual IoT Gateway DRC Compact User Manual IoT Gateway DRC Compact 656 KB
