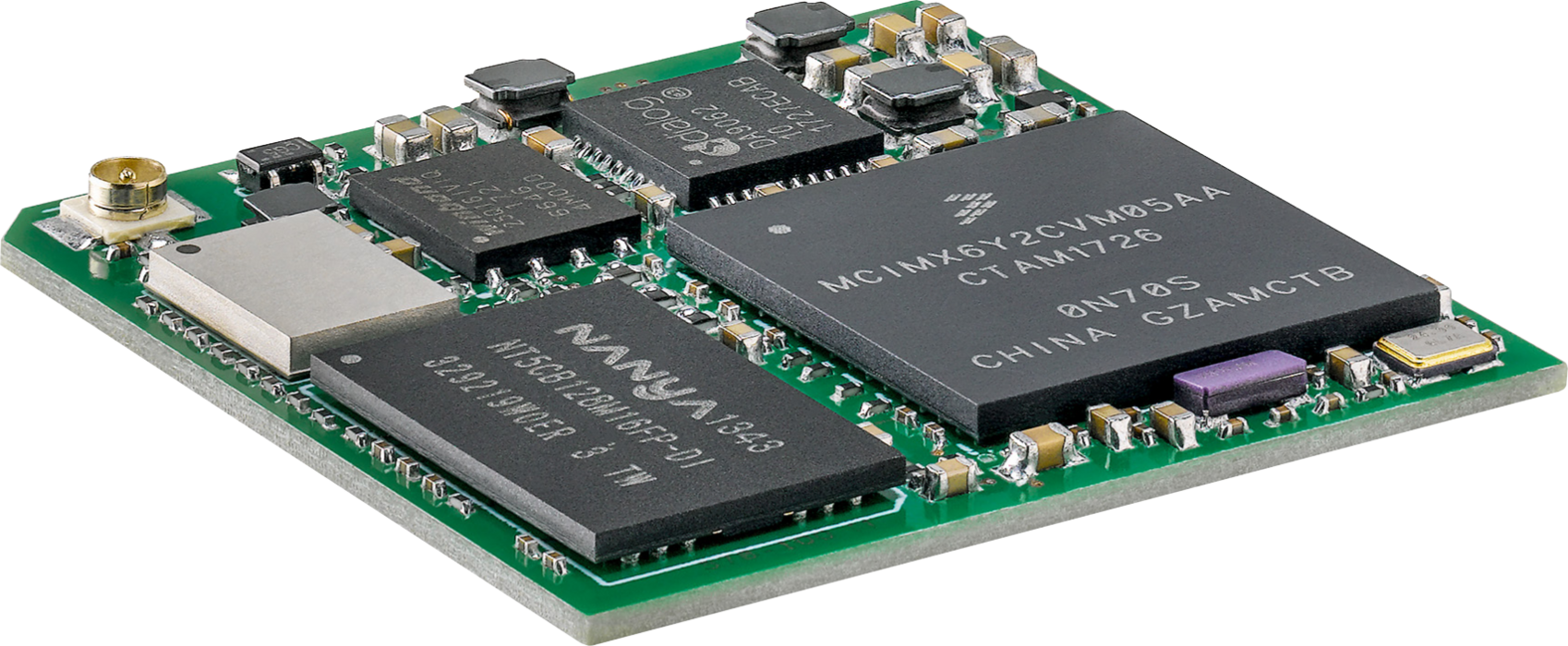

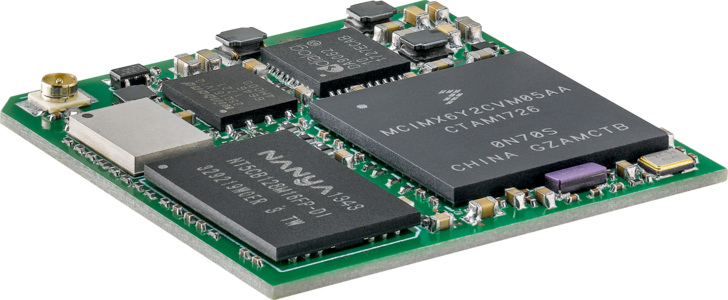

DHCOR i.MX6UL(L)

Space-saving, cost-efficient, power-saving.

Solderable computer module in smallest design with only 29 x 29 x 3.2 mm
Solder-on module enables cost-effective, automated assembly
WiFi, Bluetooth and Dual Ethernet on board
Supply voltage: 5.0 VDC at typ. 0.5 W
Guaranteed long-term availability of 10+ years

Possible Application

Request product

Technical Data
Block Diagrams
Configurations
Product Details

Board type

Solderable SOM

5-Cent Cooling available

CPU details

1x ARM Cortex-A7 up to 900 MHz

CPU vendor

NXP

CPU type

Cortex-A7

Co-processor available

Number of cores

GPU available

GPU type

3D GPU Vivante® @533 MHz - OpenGL® ES 2.0

Security

Crypto Engine, Secure Boot

DDR3 DRAM

128 / 256 / 512 / 1024 MB

SPI NOR flash

2 MB

Bluetooth available

Bluetooth version

Bluetooth® v5.1 (BR/EDR/BLE), U.FL antenna connector onboard

WiFi available

WiFi version

WiFi IEEE802.11b/g/n

BSP

Linux (Debian, Yocto)

Power supply

5.0 VDC

Typ. power consumption

0.5 W

Operating temperature

-40 to +85 °C

Storage temperature

-40 to +85 °C

Dimensions

29.0 x 29.0 x 3.2 mm

Available interfaces for LGA (271 pins)

Bus interface

16 Bit

Dual Ethernet available

Ethernet 1

10 / 100 Mbit/s

Ethernet 2

10 / 100 Mbit/s

MMC/SD

MMC 4.5 / SD 3.0 / SDIO Port (1 / 2 / 4 Bit)

NAND

8 Bit interface Raw MLC / SLC

Quad SPI

CAN

2x V2.0B / 1Mbit/s

UART

8x up to 5.0 Mbit/s

SPI

4x max. 52 Mbit/s

I2C

4x max. 400 kbit

USB OTG

2x USB 2.0 OTG with PHY

CSI (parallel camera)

1x 8 / 10 / 16 Bit

Display RGB

24 Bit

SPDIF

I2S / SAI

Number of GPIOs

PWM / Timer

4x 32 bit timer,
8x 16 Bit PWM

Debug interface

JTAG interface

Item Number	Model (other configurations on request)	Product description
HI00094	DHCR-iMX6ULL-C080-R051-SPI-WBT-I-01LG	DHCOR i.MX6ULL, 800 MHz, 512 MByte DRAM, 2 MByte SPI boot flash, WiFi BT module, -40 to +85 °C, DHCOM revision, LGA connection
HI00095	DHCR-iMX6ULL-C080-R051-SPI-I-01LG	DHCOR i.MX6ULL, 800 MHz, 512 MByte DRAM, 2 MByte SPI boot flash, -40 to +85 °C, DHCOM revision, LGA connection

* Other configurations on request

What is the model number for ordering? DHCR-CPU-Cxxx-Rxxx[-SPI][-W/WBT]-X-01LG

CPU	i.MX6ULL (MCIMX6Y2): i.MX6ULL, i.MX6UltraLite (MCIMX6G2): i.MX6UL
Cxxx	528 MHz: C052, 696 MHz: C069, 800 MHz: C080, 900 MHz: C090
Rxxx	128 Mbyte: R012, 256 Mbyte: R025, 512 Mbyte: R051, 1024 Mbyte: R102
X	Commercial temperature range (0 - 70 °C): C, Industrial temperature range (-40 - 85 °C): I (only -30 - 70 °C with option WBT)
01LG	DHCOR Revision, LGA connection
Options
[-SPI]	2 Mbyte SPI boot flash
[-W] or [-WBT]	WiFi via Murata 1FX module with U.FL connector: W, WiFi and Bluetooth® via Murata 1DX module with U.FL connector: WBT

The DHCOR i.MX6UL(L) is a space and power saving solderable computer module in smallest form factor with only 29 x 29 x 3.2 mm and thus enables a particularly cost-effective, automated assembly. The DHCOR i.Mx6UL(L) System on Module with a supply voltage of 5.0 VDG at typ. 0.5 W is equipped with WiFi, Bluetooth and Dual Ethernet. NXP's proven i.MX microcontroller series is based on ARM architecture and is designed for low power consumption. The i.MX processors are SoCs that combine multiple processing units on a single chip. The application possibilities of the System on Module from DH electronics are versatile and range from building automation to laboratory and measurement technology, machine and plant engineering to e-mobility. DH electronics also offers a guaranteed long-term availability of 10+ years for the DHCOR STM32MP15.

Downloads

	Name	Size
	Datasheet DHCOR i.MX6UL(L)	~ 5 MB
	User Manual DHCOR i.MX6UL(L)	2 MB
