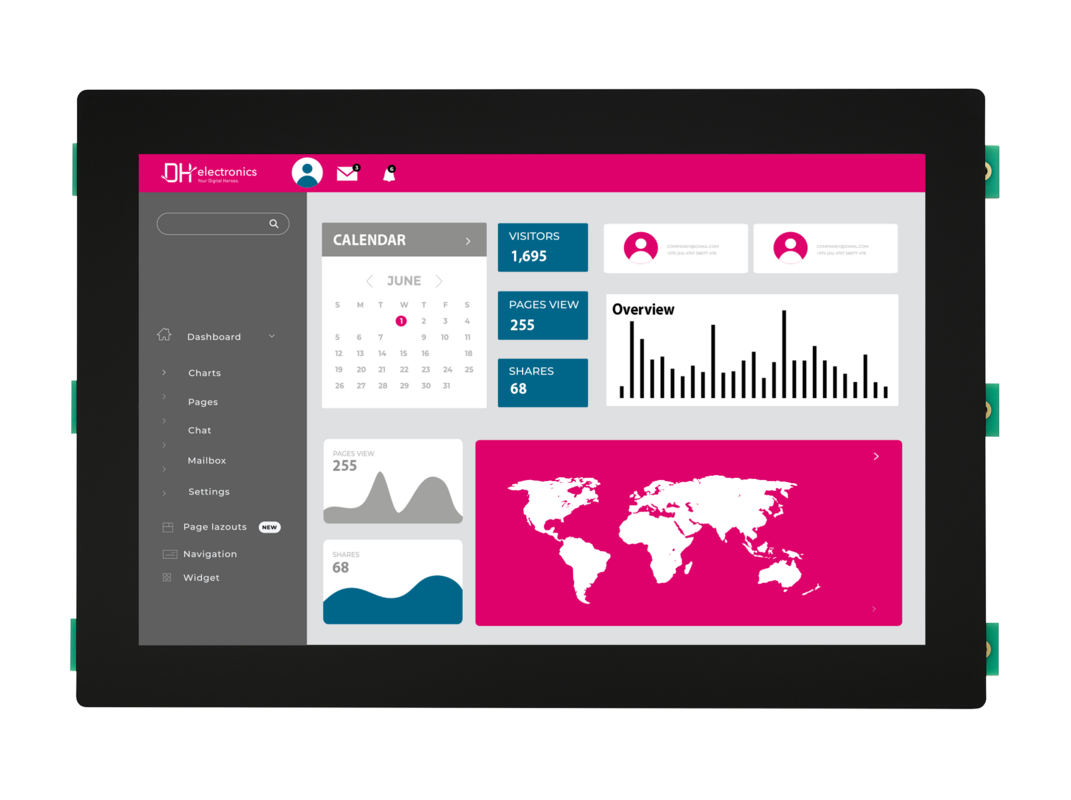

DHMI 10.1

NEW
DHMI 10.1
DHMI 10.1
DHMI 10.1
NEW

High quality HMI with 10.1'' and optional frame.

  • Robust and compact solution for human-machine interaction

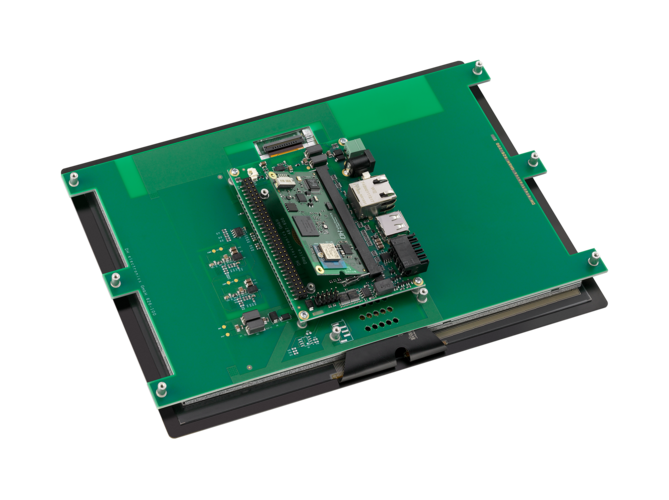

  • Powerful and energy-saving DHCOM module as computing unit
  • Use in industrial applications thanks to EN6100-6-2 and EN6100-6-3

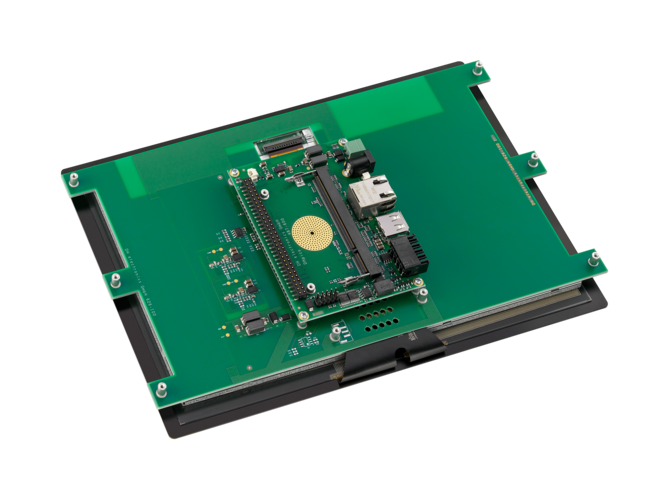

  • No heat sink required thanks to 5-cent cooling solution
  • Thanks to the family concept, the module can be replaced by a higher-performance module at any time
  • CE-certified, UL-listed
Possible Application
Automation
Metrology
Engineering
Request product
CPU details

CPU name

NXP i.MX6 Solo | default, other processors with DHCOM standard available on request

CPU type

ARM Cortex-A9

CPU clock

up to 800 MHz

Memory

DDR3 RAM

1024 MB

eMMC flash

4 GB

E2Prom

128 Byte

Micro SD socket available

Yes

External RTC available

Yes

Connectivity

USB host

1x High-speed

Ethernet

10 / 100 Mbit/s

Serial interfaces

1x RS232 (Rx, Tx, Rts, Cts) | 1x RS485 (available instead of RS232)

Input

1x

Output

1x

CAN

1x 1 Mbit/s

Multimedia

2D | 3D GPU

2D: Vivante GC320 for i.MX6 Solo
3D: Vivante GC880 with 1 shader for i.MX6 Solo

2D | 3D Acceleration

Yes | Yes

Display diagonal

10.1 inch

Resolution

1280 x 800 px

Color depth

16.7M

MTBF

50.000 hrs

Touch

PCAP

Operating system

BSP

Linux (Debian, Yocto)

Debug interface

JTAG interface on module

Setup and config

Get our free web browser to configure the DHMI or to display any website.

Physical

Dimensions

257 x 173 x 35 mm frameless
272 x 193 x 38 mm with frame

Weight

860,5 g (frameless)
1157,5 g (with frame)

Power supply

24.0 VDC

Typ. power consumption

15.0 W

Operating temperature

0 to +50 °C

Storage temperature

0 to +70 °C

Moisture

+10 % to +80 % (non-condensing)

Certifications

EN 61000-6-2 | EN 61000-6-3 | EN 62368

Item Number Model (other configurations on request) Product description
FD00055 DHMI-101-P-FB-STM32MP157C-R102-F0819-E-CAN-IO-RS232-C-01P1 DHMI, 10.1'', PCAP touch, framed black, STM32MP157C, 1024 MByte, 8192 MByte eMMC, ethernet, CAN, additional IOs, RS232, 0 to +50 °C, revision 01, picoITX1
* Other configurations on request
What is the model number for ordering? DHMI-INCH-T-HO-CPU-Rxxx[-Fxxxx][-E[x]][-CAN][-IO][232][485][-LON][-W][BT][-LTE]-X-01P1
INCH 040 = 4.3'', 070 = 7.0'', 080 = 8.0'', 101 = 10.1''
T R = resistive touch, P = PCAP touch
HO OF = Open Frame, BO = Boxed, RM = Rear Mount, FB = Framed Black, FM = Framed Metallic
CPU IMX6S = i.MX6 Solo, IMX6D = i.MX6 Dual, IMX6DL = i.MX6 Dual Lite, IMX6Q = i.MX6 Quad
STM32MP157C = STM32MP157C
Rxxx RAM memory size in 10 MB steps ( i.e. R006 = 64 MB, R012 = 128 MB, ...)
X Commercial temperature range (0 °C - 70 °C): C, Industrial temperature range (-25 °C - 85 °C): I
01Px Revision 01; P[x] = dhpico ITX type [1,2,...] example: 01P1 = 487-600 dhpico ITX, 02P1 = 487-700 dhpico ITX
Options
Fxxx Flash memory size in 10MB steps ( i.e. 0006 = 64MB, 0012 = 128MB, 0...)
E[x] E = Ethernet, E[2] = Dual Ethernet
CAN CAN port
IO additional IOs
232 RS-232 interface
485 RS-485 interface
LON LON interface
W W = WiFi
BT BT = Bluetooth
LTE LTE interface

The DHMI 10.1 is a high-quality, robust, compact 10.1" Human Machine Interface with PCAP touch and open source graphics driver and thus the perfect solution for human-machine interaction. The DHMI 10.1" is factory equipped with the CPU i.MX6 Solo from NXP with an ARM Cortex-A9 with up to 800 MHz, other processors with DHCOM standard, e.g. with STM32MP15 processor are of course available on request. Thanks to EN6100-6-2 and EN6100-6-3, the HMI is ideally suited for use in industrial applications. The DHMI 10.1" is equipped with a DHCOM module as computing unit and does not need an extra heat sink due to the proven 5-cent cooling solution. Thanks to the family concept, the module can be replaced by a higher-performance one at any time. The application possibilities of the DHMI 10.1" Human Machine Interface range from building automation, laboratory and measurement technology to machine and plant engineering.
