DHMI 7

DHMI 7
DHMI 7
DHMI 7

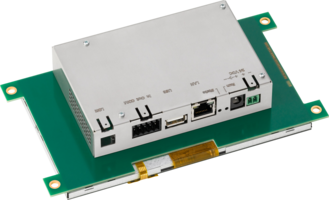

7'' HMI for harsh industrial environments.

  • Robust and compact solution for human-machine interaction
  • Powerful and energy-saving DHCOM module as computing unit
  • Use in industrial and commercial applications thanks to EN6100-6-2 and EN6100-6-3
  • No heat sink required thanks to 5-cent cooling solution
  • Thanks to the family concept, the module can be replaced by a higher-performance module at any time
Possible Application
Automation
Metrology
Engineering
Request product
CPU details

CPU name

NXP i.MX6 Solo | default, other processors with DHCOM standard available on request

CPU type

ARM Cortex-A9

CPU clock

up to 800 MHz

Memory

DDR3 RAM

1024 MB

eMMC flash

4 GB

E2Prom

128 Byte

Micro SD socket available

Yes

External RTC available

Yes

Connectivity

USB host

1x High-speed

Ethernet

10 / 100 Mbit/s

Serial interfaces

1x RS232 (Rx, Tx, Rts, Cts) | 1x RS485 (available instead of RS232)

Input

1x

Output

1x

CAN

1x 1 Mbit/s

Multimedia

2D | 3D GPU

2D: Vivante GC320 for i.MX6 Solo
3D: Vivante GC880 with 1 shader for i.MX6 Solo

2D | 3D Acceleration

Yes | Yes

Display diagonal

7 inch

Resolution

800 x 480 px

Color depth

16.7M

MTBF

30.000 hrs

Touch

4-wire resistive

Operating system

BSP

Linux (Debian, Yocto)

Debug interface

JTAG interface on module

Setup and config

Get our free web browser to configure the DHMI or to display any website.

Physical

Dimensions

187 x 100 x 34 mm

Weight

500 g

Power supply

24.0 VDC

Typ. power consumption

6.0 W

Operating temperature

0 to +50 °C

Storage temperature

0 to +70 °C

Moisture

+10 % to +80 % (non-condensing)

Certifications

EN 61000-6-2 | EN 61000-6-3

Item Number Model (other configurations on request) Product description
FD00031 DHMI-070R-OF-IMX6S-R051-F0409-E-CAN-IO-RS232-C-01P1 DHMI, 7.0'', resistive touch, open frame, i.MX6 Solo, 512 MByte, 4096 MByte eMMC, ethernet, CAN, additional IOs, RS232, 0 to +50°C, revision 01, picoITX1
FD00058 DHMI-070R-FB-STM32MP157C-R102-F0819-E-CAN-IO-RS232-C-01P1 DHMI, 7.0'', resistive touch, framed black, STM32MP157C, 1024 MByte, 8192 MByte eMMC, ethernet, CAN, additional IOs, RS232, 0 to +50 °C, revision 01, picoITX1
* Other configurations on request

The DHMI 7 is a high-quality, robust, compact 7" Human Machine Interface with resistive touch screen, optional LON interface and open source graphics driver and thus the perfect solution for interaction between man and machine. By default, the DHMI 7 is equipped with the CPU i.MX6 Solo from NXP is equipped with an ARM Cortex-A9 with up to 800 MHz, other processors with DHCOM standard are of course available on request.Thanks to EN6100-6-2 and EN6100-6-3, it is ideally suited for use in industrial applications. The DHMI 7 is equipped with a DHCOM module as the computing unit and does not require an extra heat sink due to the proven 5-cent cooling solution. Thanks to the family concept, the module can be replaced by a high-performance one at any time. The application possibilities of the DHMI 7 Human Machine Interface range from building automation, laboratory and measurement technology to mechanical and plant engineering.

Downloads
  Name Size
Datasheet DHMI 7 ~ 5 MB
User Manual DHMI 7 User Manual DHMI 7 1 MB
User Manual Webbrowser User Manual Webbrowser 793 KB

CPU details

CPU name

NXP i.MX6 Solo | default, other processors with DHCOM standard available on request

CPU type

ARM Cortex-A9

CPU clock

up to 800 MHz

Memory

DDR3 RAM

1024 MB

eMMC flash

4 GB

E2Prom

128 Byte

Micro SD socket available

Yes

External RTC available

Yes

Connectivity

USB host

1x High-speed

Ethernet

10 / 100 Mbit/s

Serial interfaces

1x RS232 (Rx, Tx, Rts, Cts) | 1x RS485 (available instead of RS232)

Input

1x

Output

1x

CAN

1x 1 Mbit/s

Multimedia

2D | 3D GPU

2D: Vivante GC320 for i.MX6 Solo
3D: Vivante GC880 with 1 shader for i.MX6 Solo

2D | 3D Acceleration

Yes | Yes

Display diagonal

7 inch

Resolution

800 x 480 px

Color depth

16.7M

MTBF

30.000 hrs

Touch

4-wire resistive

Operating system

BSP

Linux (Debian, Yocto)

Debug interface

JTAG interface on module

Setup and config

Get our free web browser to configure the DHMI or to display any website.

Physical

Dimensions

187 x 100 x 34 mm

Weight

500 g

Power supply

24.0 VDC

Typ. power consumption

6.0 W

Operating temperature

0 to +50 °C

Storage temperature

0 to +70 °C

Moisture

+10 % to +80 % (non-condensing)

Certifications

EN 61000-6-2 | EN 61000-6-3

Item Number Model (other configurations on request) Product description
FD00031 DHMI-070R-OF-IMX6S-R051-F0409-E-CAN-IO-RS232-C-01P1 DHMI, 7.0'', resistive touch, open frame, i.MX6 Solo, 512 MByte, 4096 MByte eMMC, ethernet, CAN, additional IOs, RS232, 0 to +50°C, revision 01, picoITX1
FD00058 DHMI-070R-FB-STM32MP157C-R102-F0819-E-CAN-IO-RS232-C-01P1 DHMI, 7.0'', resistive touch, framed black, STM32MP157C, 1024 MByte, 8192 MByte eMMC, ethernet, CAN, additional IOs, RS232, 0 to +50 °C, revision 01, picoITX1
* Other configurations on request

The DHMI 7 is a high-quality, robust, compact 7" Human Machine Interface with resistive touch screen, optional LON interface and open source graphics driver and thus the perfect solution for interaction between man and machine. By default, the DHMI 7 is equipped with the CPU i.MX6 Solo from NXP is equipped with an ARM Cortex-A9 with up to 800 MHz, other processors with DHCOM standard are of course available on request.Thanks to EN6100-6-2 and EN6100-6-3, it is ideally suited for use in industrial applications. The DHMI 7 is equipped with a DHCOM module as the computing unit and does not require an extra heat sink due to the proven 5-cent cooling solution. Thanks to the family concept, the module can be replaced by a high-performance one at any time. The application possibilities of the DHMI 7 Human Machine Interface range from building automation, laboratory and measurement technology to mechanical and plant engineering.

  Name Size
Datasheet DHMI 7 ~ 5 MB
User Manual DHMI 7 User Manual DHMI 7 1 MB
User Manual Webbrowser User Manual Webbrowser 793 KB
