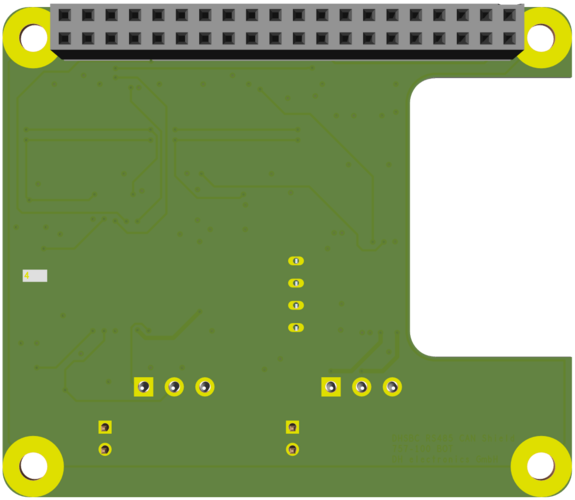

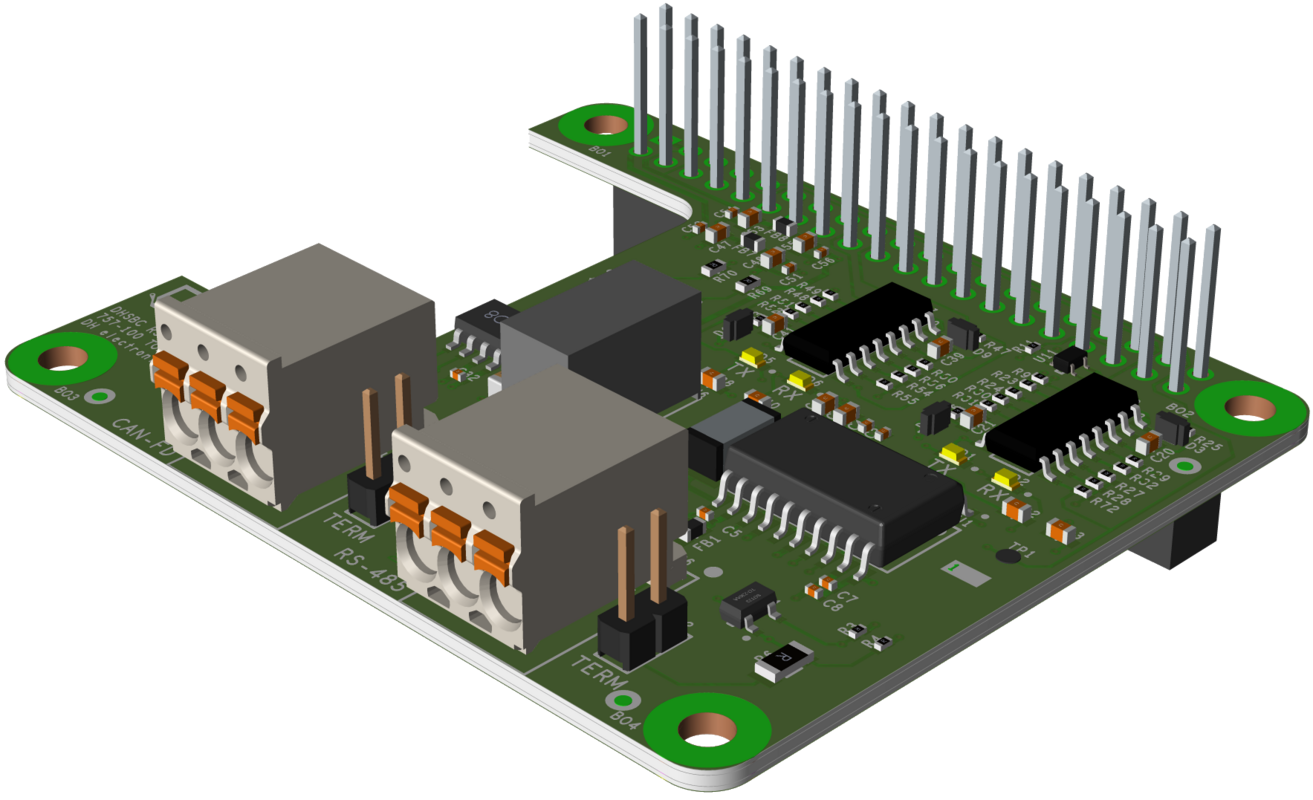

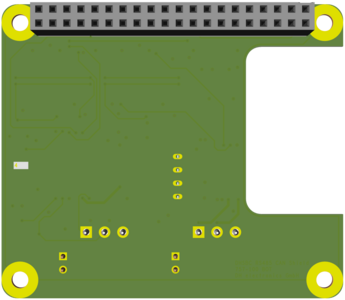

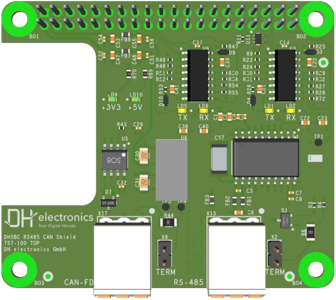

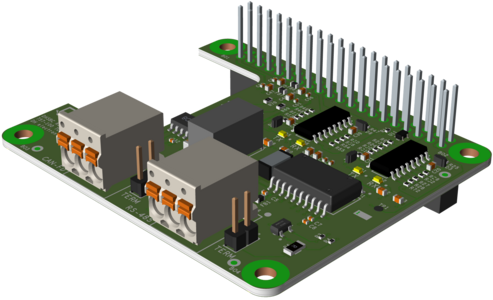

DHSBC RS-485 CAN Shield

NEW

Extension board specifically for DHSBC Single Board Computers
Galvanically isolated interfaces for robust industrial networks
Easy connection via the 40-pin expansion header
CAN-FD – galvanically isolated, up to 5 Mbit/s
RS-485 – galvanically isolated with ±15 kV ESD protection, up to 500 kbit/s
External connection via picoMAX connector
Dimensions: 65 × 56 mm

Possible Application

Request product

Technical Data
Configurations
Product Details

Board Type

DHSBC Shield

Interfaces

CAN-FD

Galvanically isolated up tp 5 Mbit/s

RS-485

Galvanically isolated with ±15 kV ESD protection up to 500 kbp/s

Physical

Dimensions

65 x 56 mm

Operating temperature

-40 to +85 °C

Storage temperature

-40 to +85 °C

Item Number	Model (other configurations on request)	Product description
HS00052	DHSBC RS485 CAN Shield	DHSBC shield with isolated 1x CAN and 1x RS-485 interface

* Other configurations on request

The DHSBC RS-485 CAN Shield is an expansion board that is compatible with the DHSBC boards. The shield can be easily connected to the respective single-board computer via the 40-pin expansion header without any additional effort. The board provides one RS485 interface and one CAN FD interface, which are routed to the outside via a picoMAX connector.

Downloads

	Name	Size
	Datasheet DHSBC RS-485 CAN Shield	~ 5 MB
	[Translate to Englisch:] User Manual DHSBC RS485 CAN Shield	4 MB

Board Type

DHSBC Shield

Interfaces

CAN-FD

Galvanically isolated up tp 5 Mbit/s

RS-485

Galvanically isolated with ±15 kV ESD protection up to 500 kbp/s

Physical

Dimensions

65 x 56 mm

Operating temperature

-40 to +85 °C

Storage temperature

-40 to +85 °C

Item Number	Model (other configurations on request)	Product description
HS00052	DHSBC RS485 CAN Shield	DHSBC shield with isolated 1x CAN and 1x RS-485 interface

* Other configurations on request

	Name	Size
	Datasheet DHSBC RS-485 CAN Shield	~ 5 MB
	[Translate to Englisch:] User Manual DHSBC RS485 CAN Shield	4 MB
