Premium Developer Kit

The Premium Developer Kit for all pluggable DHCOM modules.

Reference design for DHCOM modules, circuit diagram is available
Signals can be separated and measured by jumper
All interfaces of the DHCOM family concept are connected on board and available externally
DHCOM 5-cent cooling solution is integrated on board
Display Connector for the possibility to adapt a customer specific display
Integrated measurement amplifier to determine the current consumption of the DHCOM module
Integrated audio codec

Possible Application

Request product

Technical Data
Block Diagrams
Configurations
Accessories
Product Details

Board type

Development Board

5-Cent Cooling available

Ethernet

2x 100 Mbit/s
1x 1 Gbit/s

USB

USB host: 3x USB 2.0 high-speed
USB OTG: 1x USB 2.0 high-speed

UART

1x RS232, 2x TTL

CAN

1x integrated transceiver

I2C

SPI

SDIO/SD/MMC

tbd.

Camera

1x MIPI CSI-2

Digital audio

1x I2S (tbd.)

M.2

1x E-key Socket 1x M-key Socket (PCIe, SATA, UART, USB, I2S, SDIO)

Bus interface

16 Bit

Number of GPIOs

Analog input

LEDs

4x userdefined

BSP

Linux

Power supply

24 VDC

Operating temperature

0 to 70 °C

Storage temperature

0 to 70 °C

Dimensions

208.5 x 185.5 x 27 mm

Display interface connector

connector for DHDIB standard with touch, PWM, I2C, SPI, UART, GPIO, USB host, RGB and LVDS (dual channel)

Core module connector

SODIMM-200 Socket for DHCOM, Molex High-Speed Socket for DHCOM

Item Number	Model (other configurations on request)	Product description
FD00067	DHCOM Premium Developer Kit 3 for DHCOM-D2 modules	-

* Other configurations on request

Image	Title	Description

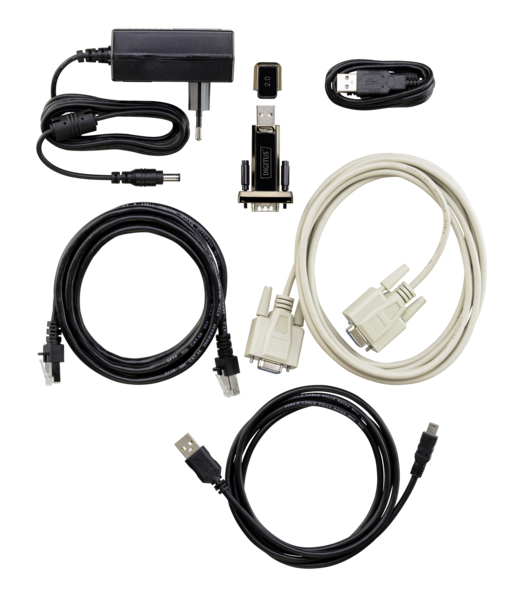

	Cable Kit Premium Development Kit	Contains all necessary cables for Premium Development Kit.

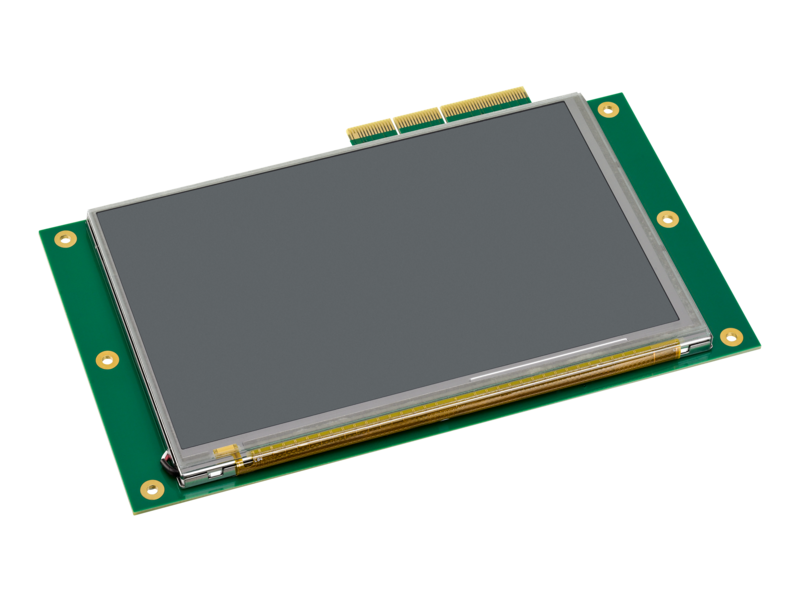

	7 inch RGB Display	7'' RGB display for testing purposes. FD00035

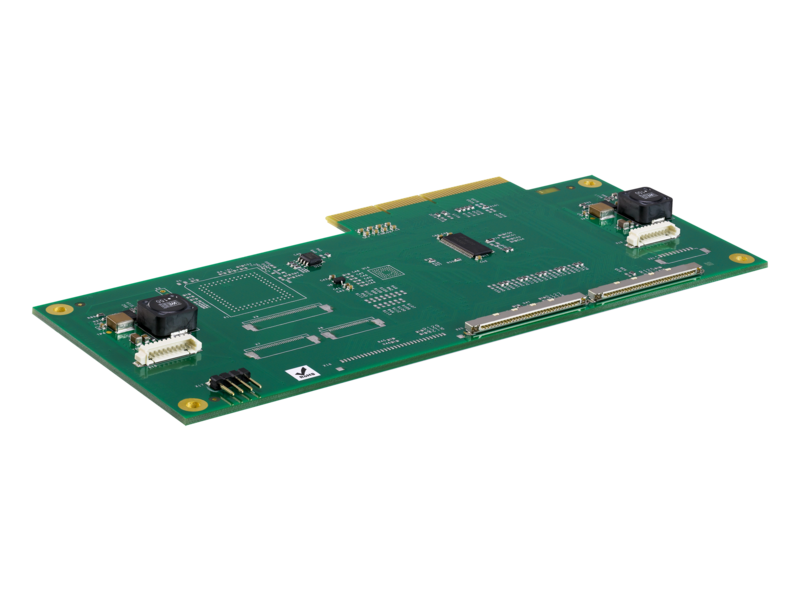

	LVDS Adapter	Adapter for connection of LVDS display. HD00029

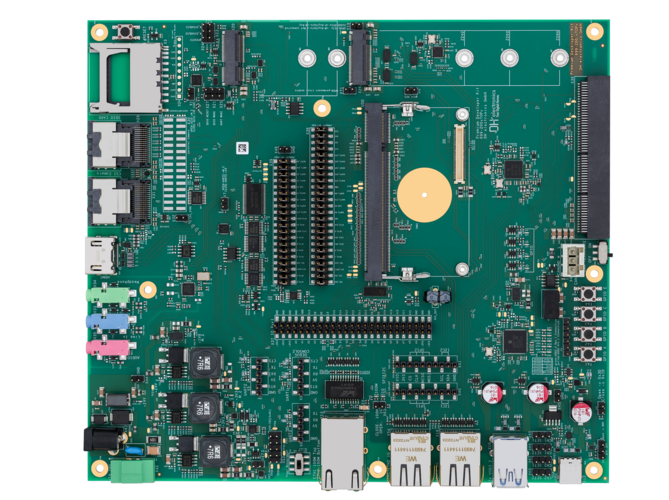

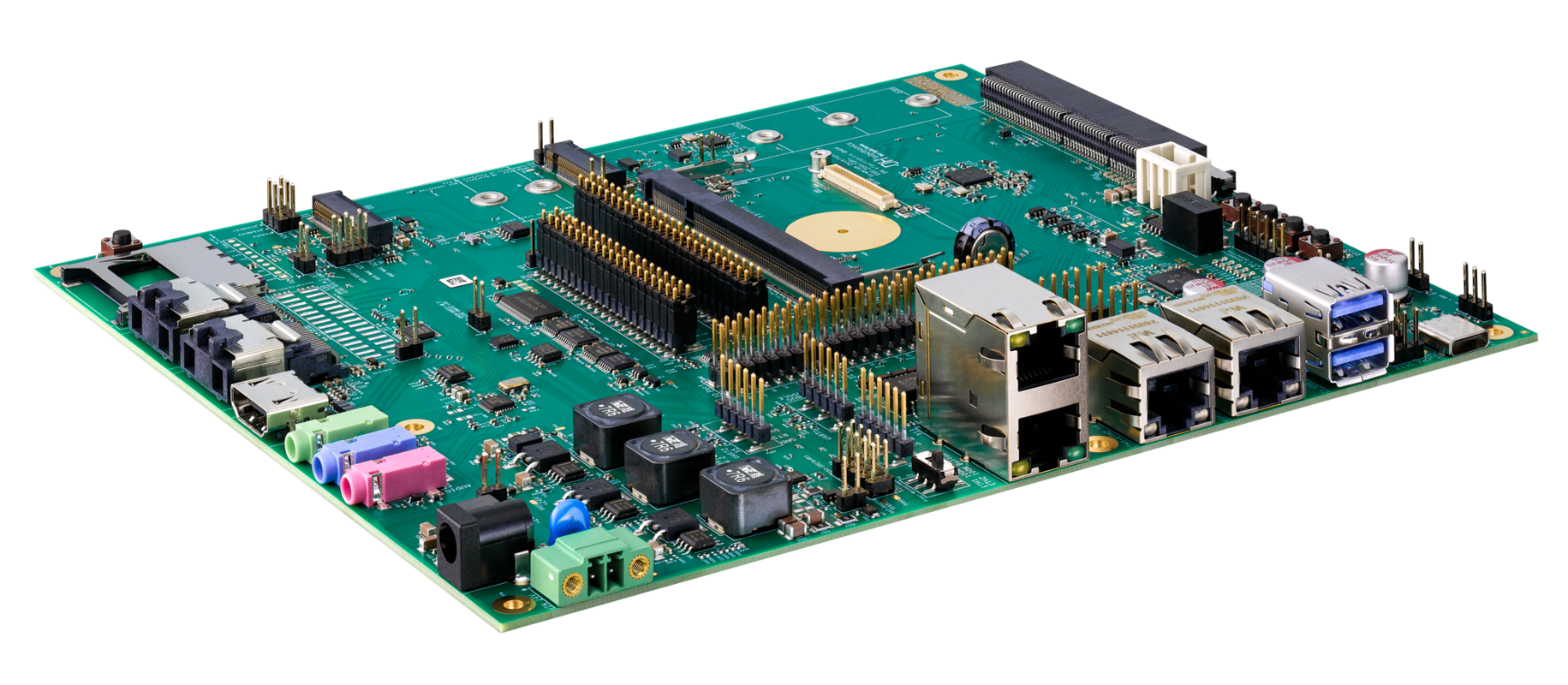

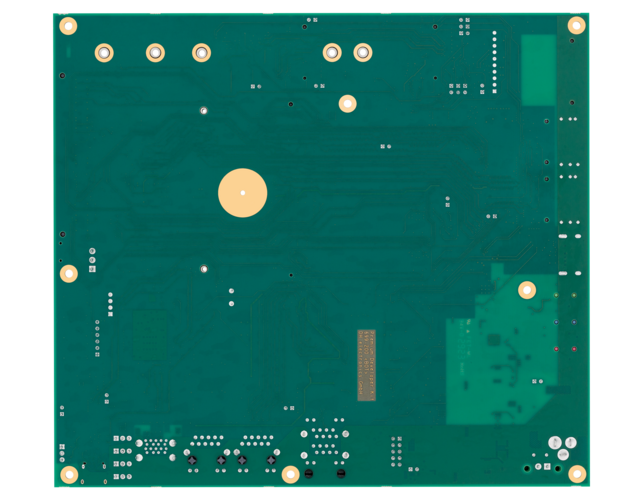

The Premium Developer Kit (PDK) is a development board where all interfaces of the DHCOM family concept are connected and externally available and thus all pluggable DHCOM modules from DH electronics can be tested. Signals can be separated and measured, furthermore the Display Connector offers the possibility to adapt a customer specific display. The PDK has both an integrated measurement amplifier for determining the current consumption of the DHCOM module and an audio codec as well as the proven DHCOM 5-cent cooling solution on board.

Downloads

	Name	Size
	Datasheet Premium Developer Kit	~ 5 MB
