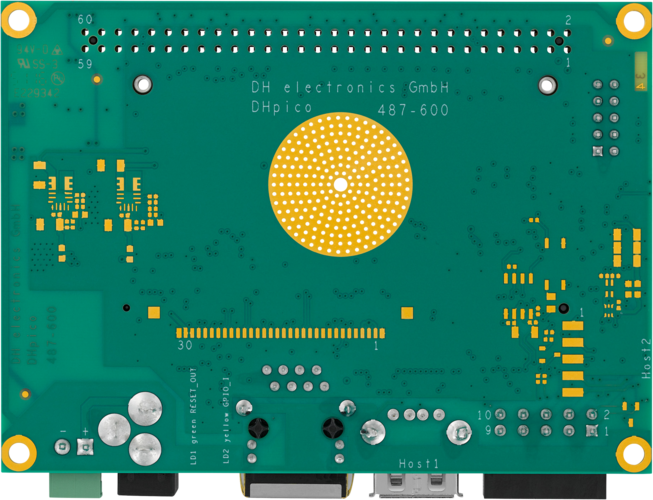

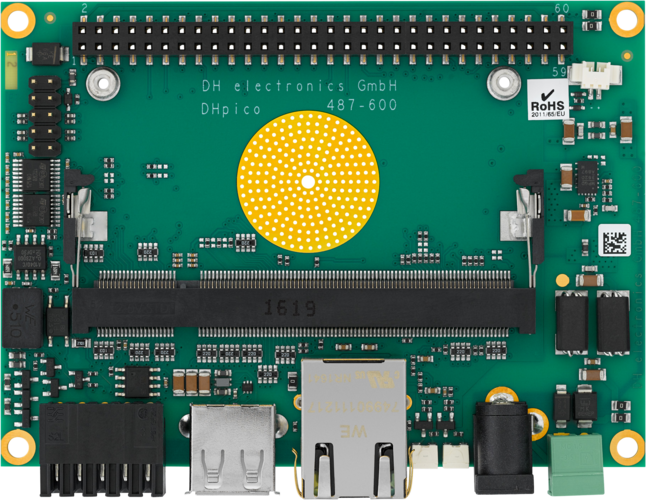

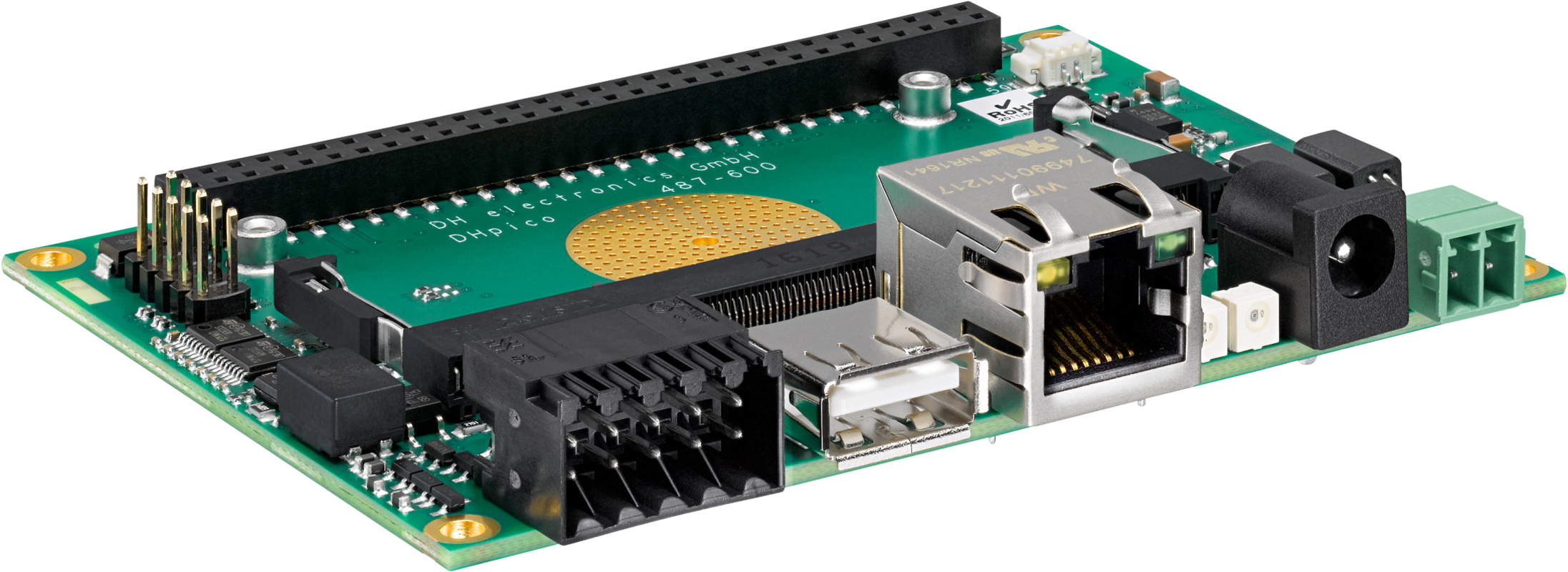

picoITX Carrier Board

The Pico ITX compatible carrier board for all DHCOMs

Ideal for fast and easy prototyping
Compatible with all pluggable DHCOM modules with SODIMM-200 socket
Space saving with only 100 x 72 x 18 mm
No heat sink thanks to 5-Cent Cooling Solution

Possible Application

Request product

Technical Data

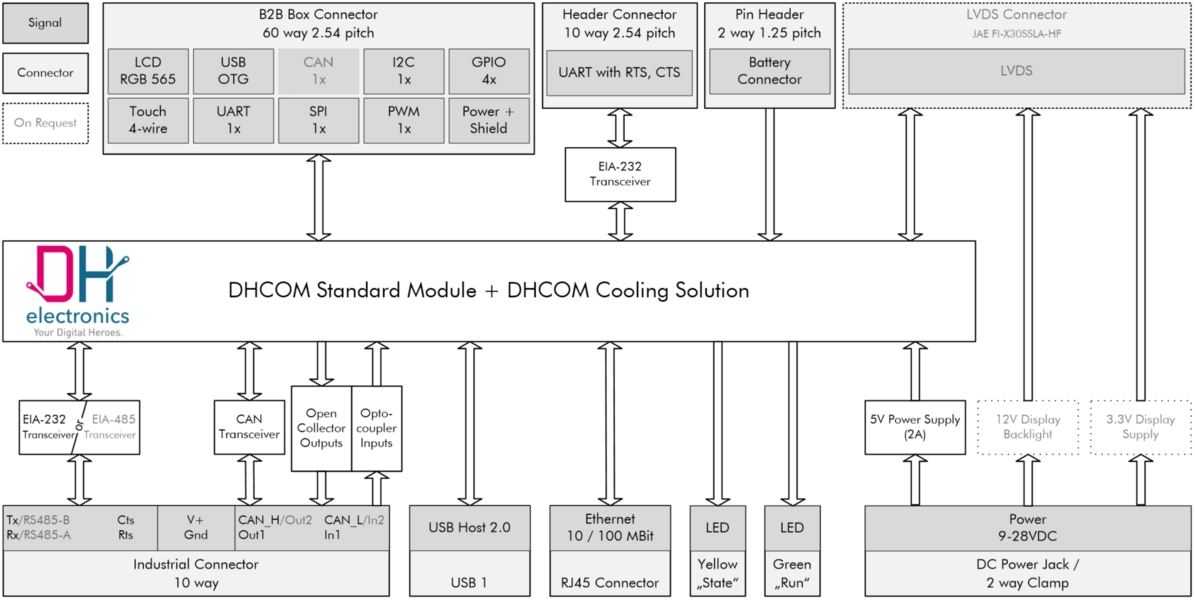

Block Diagrams
Configurations
Accessories
Product Details

Board type

Carrier Board

5-Cent Cooling available

Ethernet

10 / 100 Mbit/s

USB

USB host: 1x USB 2.0 high-speed
USB OTG: 1x USB 2.0 high-speed

RS232 | RS485

1x Rx / Tx / Rts / Cts
1x Rx / Tx / Rts / Cts OR RS485

UART

1x Rx, Tx

CAN

1x CAN up to 1 MBaud or CAN without transceiver

I2C

SPI

1x, 1 chip select

Display

1x RGB @24 Bit

Touch

4-wire resistive

PWM

1x 16 Bit

Number of GPIOs

Inputs

1x Optocoupler

Outputs

1x Open Collector

LEDs

2x status (green, yellow)

Battery socket

CR2032

Power supply

9.0 to 28.0 VDC

Operating temperature

-40 to +85 °C

Storage temperature

tbd.

Dimensions

100 x 72 x 18 mm

Item Number	Model (other configurations on request)	Product description
HP00029	DHEC-PITX-DHCM-RS232-CAN-02PI 487-700	Dev Kit, picoITX, DHCOM modules, RS232, CAN, revision 02
HP00033	DHEC-PITX-DHCM-RS485RTS-CAN-02PI 487-700	Dev Kit, picoITX, DHOCM modules, RS485RTS, CAN, revision 02

* Other configurations on request

Image	Title	Description

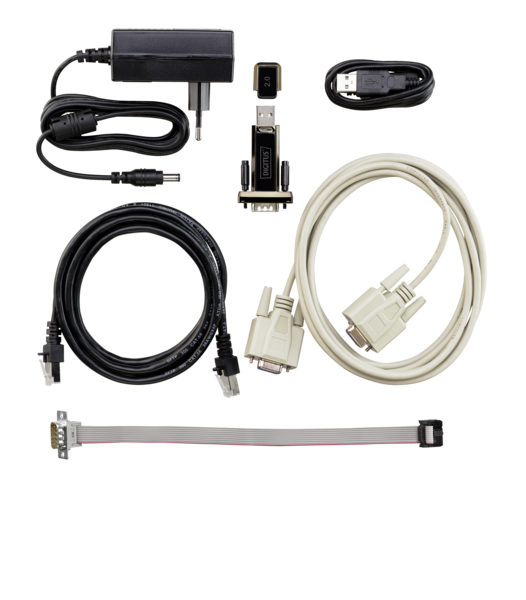

	Cable Kit picoITX	Contains all necessary cables for picoITX Carrier Board.

The picoITX Carrier Board is a space-saving single board computer based on the Pico ITX form factor with highest performance, compatible for all DHCOMs and ideal for fast and easy prototyping. The picoITX Carrier Board is particularly space-saving with 100 x 72 x18 mm and does not require a heat sink thanks to the 5-cent cooling solution.

Downloads

	Name	Size
	Datasheet picoITX Carrier Board	~ 5 MB
	User Manual picoITX Carrier Boards	846 KB

Check out our related resources

Ideal for testing of all DHCOM modules

With the Premium Developer Kit (PDK) all DHCOM modules can be tested. Show more.

Part of the 96Boards Community

Development and prototyping made easy with our reference design for the solderable DHCOR STM32MP15 module. Show more.
