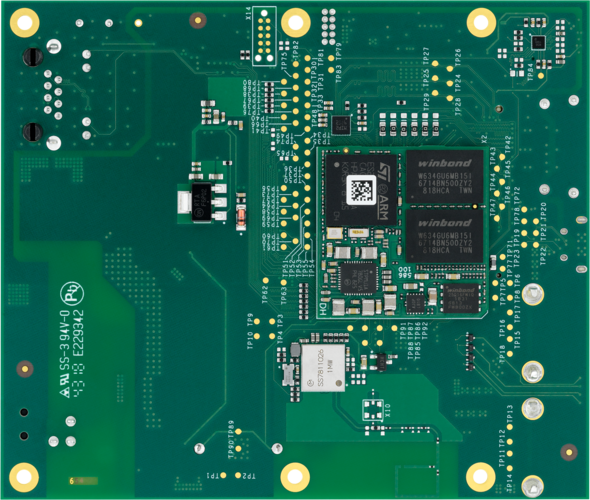

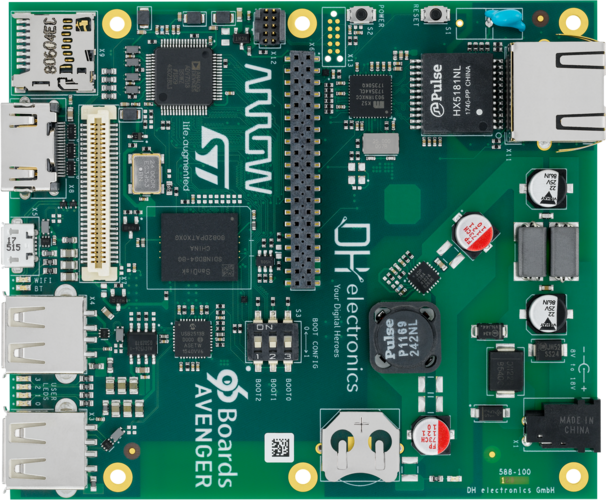

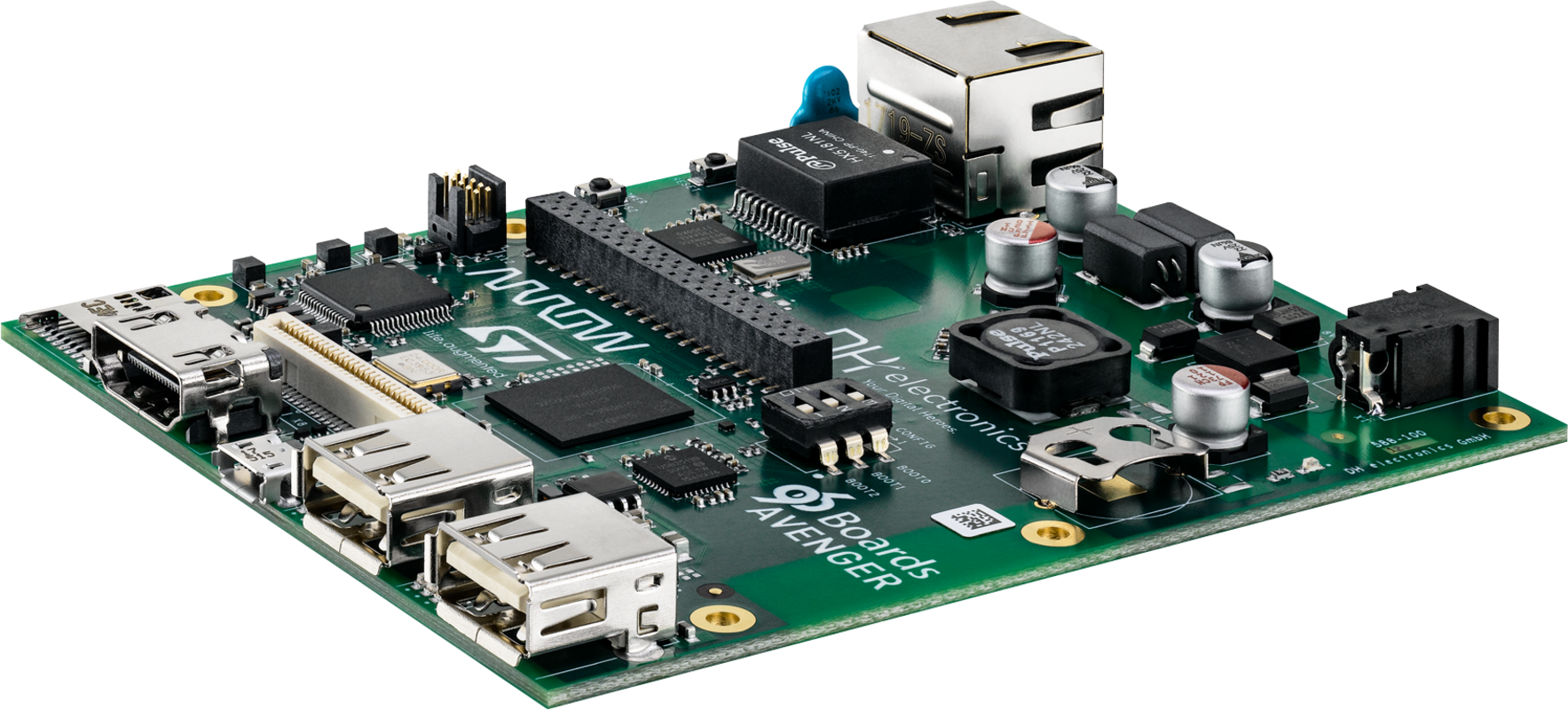

Avenger96 Maker Board

Prototyping made easy with 96Boards

  • Soldered DHCOR STM32MP15 SOM
  • Compatible with accessories of the 96Boards Community
  • Bluetooth and WiFi
  • GB Ethernet
  • Buttons and LEDs for prototyping
  • Available through our partner Arrow Electronics
Possible Application
Automation
Metrology
eMobility
Engineering
Health

Board type

Development Board

CPU details

2x ARM® Cortex-A7 up to 650 MHz
1x ARM® Cortex-M4 up to 209 MHz

CPU vendor

STM

CPU type

Cortex-A7, Cortex-M4

Co-processor available

Yes

Number of cores

tbd.

GPU available

Yes

GPU type

3D GPU Vivante® @533 MHz - OpenGL® ES 2.0

PMIC

STPMIC1A

DDR3 DRAM

1024 MB

eMMC flash

8 GB

NOR flash

2 MB

EEProm

128 Byte

microSD available

Yes

External RTC available

No

Bluetooth available

Yes

Bluetooth version

Bluetooth® v4.2 (BR/EDR/BLE), PCB antenna

WiFi available

Yes

WiFi version

WiFi 5 GHz & 2.4 GHz IEEE 802.11a /b/g /n/ac

USB host

2x Typ A, USB 2.0 High-speed

USB OTG

1x Typ micro-AB, USB 2.0 High-Speed

HDMI

WXGA (1366 x 768 px) @60 fps, HDMI 1.4

Ethernet

10 / 100 / 1000 Mbit/s

Battery socket

CR1216, CR1220, CR1225

Buttons

1x power, 1x reset

LEDs

4x userdefined, 1x Bluetooth, 1x WiFi, 1x power

BSP

Linux (Debian, Yocto)

Boot mode

3 bit boot mode switch

Debug interface

JTAG Interface via tag-connect

Power supply

8 to 18 VDC

Operating temperature

0 to +40 °C

Storage temperature

-40 to +85 °C

Dimensions

100 x 85 mm

Low-speed expansion connector

UART 1

Rx / Tx / Rts / Cts

UART 2

Rx / Tx

SPI 1

52 Mbit/s

I2C 1

100 / 400 / 1000 kHz

I2C 2

100 / 400 / 1000 kHz

I2S

SAI interface in master mode

Number of GPIOs

12

Power supply

5 VDC

High-speed expansion connector

MMC/SD

4 bit mode

MIPI CSI-2

2x Rx

MIPI DSI

2x Tx

I2C 1

100 / 400 / 1000
kHz

I2C 2

100 / 400 / 1000 kHz

USB host

USB 2.0 High-speed

Become a part of the 96Boards community!

  • Soldered DHCOR STM32MP15 System on Module
  • Compatible with accessories of the 96Boards Community
  • Bluetooth and WiFi
  • GB Ethernet
  • Buttons and LEDs für prototyping
  • Available through our partner Arrow Electronics

Board type

Development Board

CPU details

2x ARM® Cortex-A7 up to 650 MHz
1x ARM® Cortex-M4 up to 209 MHz

CPU vendor

STM

CPU type

Cortex-A7, Cortex-M4

Co-processor available

Yes

Number of cores

tbd.

GPU available

Yes

GPU type

3D GPU Vivante® @533 MHz - OpenGL® ES 2.0

PMIC

STPMIC1A

DDR3 DRAM

1024 MB

eMMC flash

8 GB

NOR flash

2 MB

EEProm

128 Byte

microSD available

Yes

External RTC available

No

Bluetooth available

Yes

Bluetooth version

Bluetooth® v4.2 (BR/EDR/BLE), PCB antenna

WiFi available

Yes

WiFi version

WiFi 5 GHz & 2.4 GHz IEEE 802.11a /b/g /n/ac

USB host

2x Typ A, USB 2.0 High-speed

USB OTG

1x Typ micro-AB, USB 2.0 High-Speed

HDMI

WXGA (1366 x 768 px) @60 fps, HDMI 1.4

Ethernet

10 / 100 / 1000 Mbit/s

Battery socket

CR1216, CR1220, CR1225

Buttons

1x power, 1x reset

LEDs

4x userdefined, 1x Bluetooth, 1x WiFi, 1x power

BSP

Linux (Debian, Yocto)

Boot mode

3 bit boot mode switch

Debug interface

JTAG Interface via tag-connect

Power supply

8 to 18 VDC

Operating temperature

0 to +40 °C

Storage temperature

-40 to +85 °C

Dimensions

100 x 85 mm

Low-speed expansion connector

UART 1

Rx / Tx / Rts / Cts

UART 2

Rx / Tx

SPI 1

52 Mbit/s

I2C 1

100 / 400 / 1000 kHz

I2C 2

100 / 400 / 1000 kHz

I2S

SAI interface in master mode

Number of GPIOs

12

Power supply

5 VDC

High-speed expansion connector

MMC/SD

4 bit mode

MIPI CSI-2

2x Rx

MIPI DSI

2x Tx

I2C 1

100 / 400 / 1000
kHz

I2C 2

100 / 400 / 1000 kHz

USB host

USB 2.0 High-speed

Item Number Model (other configurations on request) Product description
FS00009 Avenger96 -
* Other configurations on request
