DHSBC STM32MP2

NEW
DHSBC STM32MP2
DHSBC STM32MP2
DHSBC STM32MP2
NEW

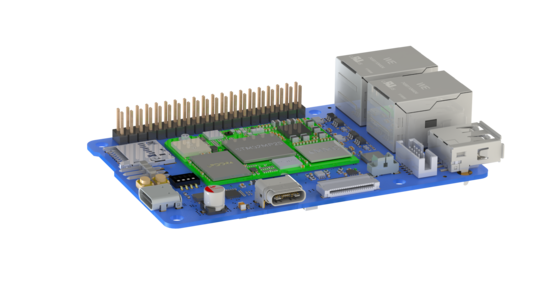

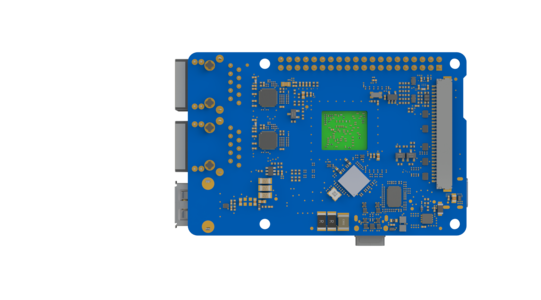

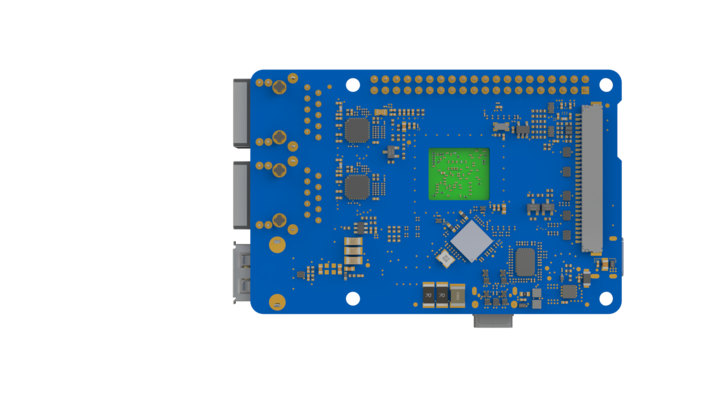

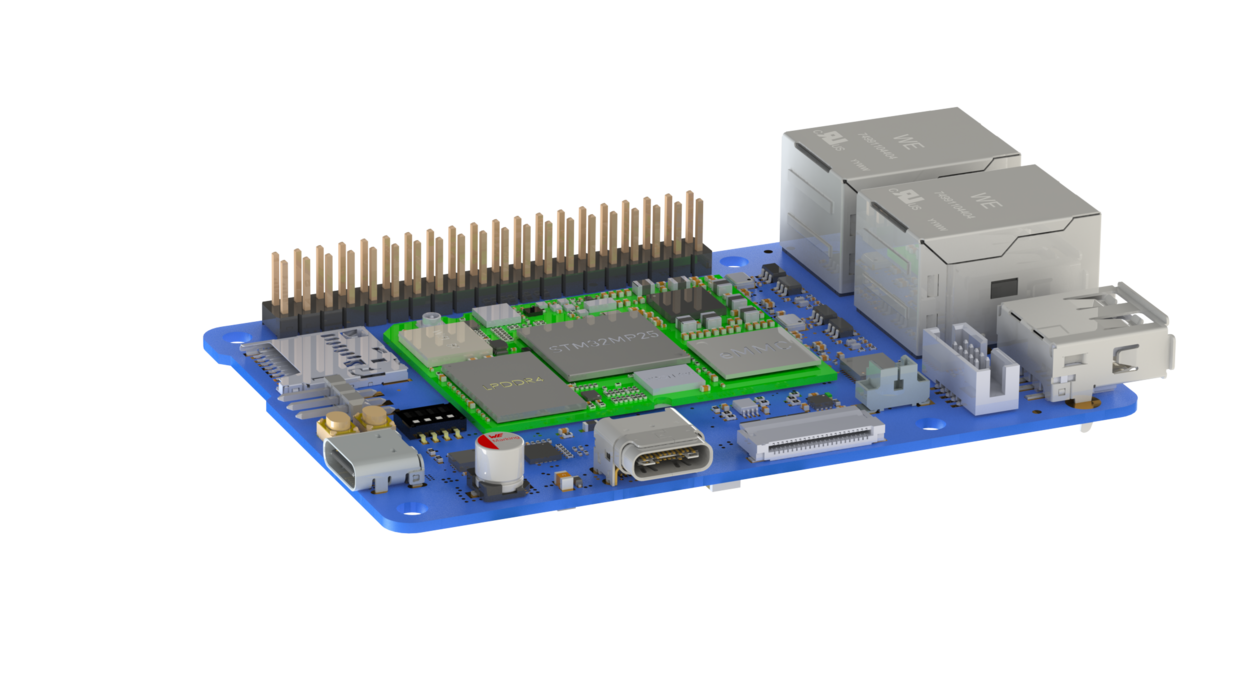

  • Single Board Computer based on solderable, pin-compatible DHCOS STM32MP2x SOM
  • Industrial grade, 10+ years available
  • Mainline Linux support (also for Vivante GPU)
  • Security Features e.g. Secure Boot / Storage
  • Connectivity: Gbit Ethernet, WiFi/BT
  • Multimedia: 3D GPU, display, video, camera
  • STPMIC25 supports low power modes
Possible Application
Automation
Metrology
eMobility
Engineering
Health
Request product

Board type

Single Board Computer

CPU details

2x ARM Cortex-A35 with 1.2 GHz
1x ARM Cortex-M33 up to 400 MHz

CPU vendor

ST

CPU type

Cortex-A35, Cortex-M33

Co-processor available

yes

Number of cores

2

PMIC

STPMIC25D

Features

Neuronal Processing Unit (NPU) VeriSilicon® with up to 900 MHz and 1.35 TOPS | Video decode / encode H264 up to 1080p60

Security

Secure boot | TrustZone® peripherals | active tamper | environmental monitors |
display secure layers | hardware accelerators | Complete resource isolation framework | “On-the-fly” DDR encryption/decryption (AES-128)

LPDDR4 DRAM

4 GB

DRAM details

LPDDR4-2400 32-bit

eMMC flash

16 GB

SPI NOR flash

4 MB

EEPROM

4 kB

microSD socket

yes

Additional RTC

Temp. compensated RTC RV-3032-C7

Bluetooth available

yes

Bluetooth version

Bluetooth® v5.4 BR/EDR/LE

WiFi available

yes

WiFi version

Tri band 2.4 GHz, 5 GHz and 6 GHz for IEEE802.11a/b/g/n/ac/ax

Ethernet

2x 1 Gbit/s

USB

1x USB-C 3.2 Gen 1x1 with DisplayPort alt. mode support
1x USB 2.0 high-speed

LVDS

1x Dual Link, 2x 4-lane LVDS connector | Up to 1.1 Gbit/s per
lane | Up to QXGA (2048 × 1536) @60 fps

MIPI-CSI2

1x 2-lanes connector | up to 2.5 Gbit/s | 5 Mpixels @30 fps

UART (serial console)

1x TTL

TPM (Trusted Platform Module)

TPM 2.0 device ST33KTPM2I

Battery connector

1x PicoBlade coin cell connector

Buttons

1x power, 1x reset

Boot mode

4 bit boot mode switch

Debug interface

JTAG

BSP

Linux Yocto (Debian on request)

Power supply

5 VDC, USB Type-C power supply port

Dimensions

85 x 56 x 18 mm

Raspberry Pi 40-pin Expansion

I2C

1x

UART

2x (with RTS and CTS)

SPI

1x (QPSI on request)

I2S/SAI

1x

PWM

2x

CAN

2x

GPIO

up to 28x

The DHSBC STM32MP2 is an industrial-grade, ready-to-use single board computer that has been specially developed for IoT and Human Machine Interface (HMI) applications. It is based on the solderable, pin-compatible DHCOS STM32MP2x System on Module, which enables a modular and scalable system architecture. The platform is designed for high performance, long-term availability of over ten years and use in demanding industrial environments.

With full support for mainline Linux, including the Vivante GPU, the DHSBC STM32MP2 provides a future-proof software base for the development of graphical user interfaces and complex applications. Integrated security functions such as Secure Boot and Secure Storage ensure the protection of sensitive data and enable the implementation of “Security by Design” approaches. Connectivity options range from Gbit-Ethernet, WiFi and Bluetooth to advanced multimedia functions such as 3D GPU, display, camera and video support. Thanks to the integrated STPMIC25 power management chip, the DHSBC STM32MP2 is also suitable for applications with high demands on energy efficiency and low-power modes.

With the DHSBC STM32MP2, DH electronics offers a robust, secure and ready-to-use platform that helps development teams bring products to market faster - without compromising on quality, security or long-term availability.

Downloads
  Name Size
Datasheet DHSBC STM32MP2 ~ 5 MB

Board type

Single Board Computer

CPU details

2x ARM Cortex-A35 with 1.2 GHz
1x ARM Cortex-M33 up to 400 MHz

CPU vendor

ST

CPU type

Cortex-A35, Cortex-M33

Co-processor available

yes

Number of cores

2

PMIC

STPMIC25D

Features

Neuronal Processing Unit (NPU) VeriSilicon® with up to 900 MHz and 1.35 TOPS | Video decode / encode H264 up to 1080p60

Security

Secure boot | TrustZone® peripherals | active tamper | environmental monitors |
display secure layers | hardware accelerators | Complete resource isolation framework | “On-the-fly” DDR encryption/decryption (AES-128)

LPDDR4 DRAM

4 GB

DRAM details

LPDDR4-2400 32-bit

eMMC flash

16 GB

SPI NOR flash

4 MB

EEPROM

4 kB

microSD socket

yes

Additional RTC

Temp. compensated RTC RV-3032-C7

Bluetooth available

yes

Bluetooth version

Bluetooth® v5.4 BR/EDR/LE

WiFi available

yes

WiFi version

Tri band 2.4 GHz, 5 GHz and 6 GHz for IEEE802.11a/b/g/n/ac/ax

Ethernet

2x 1 Gbit/s

USB

1x USB-C 3.2 Gen 1x1 with DisplayPort alt. mode support
1x USB 2.0 high-speed

LVDS

1x Dual Link, 2x 4-lane LVDS connector | Up to 1.1 Gbit/s per
lane | Up to QXGA (2048 × 1536) @60 fps

MIPI-CSI2

1x 2-lanes connector | up to 2.5 Gbit/s | 5 Mpixels @30 fps

UART (serial console)

1x TTL

TPM (Trusted Platform Module)

TPM 2.0 device ST33KTPM2I

Battery connector

1x PicoBlade coin cell connector

Buttons

1x power, 1x reset

Boot mode

4 bit boot mode switch

Debug interface

JTAG

BSP

Linux Yocto (Debian on request)

Power supply

5 VDC, USB Type-C power supply port

Dimensions

85 x 56 x 18 mm

Raspberry Pi 40-pin Expansion

I2C

1x

UART

2x (with RTS and CTS)

SPI

1x (QPSI on request)

I2S/SAI

1x

PWM

2x

CAN

2x

GPIO

up to 28x

The DHSBC STM32MP2 is an industrial-grade, ready-to-use single board computer that has been specially developed for IoT and Human Machine Interface (HMI) applications. It is based on the solderable, pin-compatible DHCOS STM32MP2x System on Module, which enables a modular and scalable system architecture. The platform is designed for high performance, long-term availability of over ten years and use in demanding industrial environments.

With full support for mainline Linux, including the Vivante GPU, the DHSBC STM32MP2 provides a future-proof software base for the development of graphical user interfaces and complex applications. Integrated security functions such as Secure Boot and Secure Storage ensure the protection of sensitive data and enable the implementation of “Security by Design” approaches. Connectivity options range from Gbit-Ethernet, WiFi and Bluetooth to advanced multimedia functions such as 3D GPU, display, camera and video support. Thanks to the integrated STPMIC25 power management chip, the DHSBC STM32MP2 is also suitable for applications with high demands on energy efficiency and low-power modes.

With the DHSBC STM32MP2, DH electronics offers a robust, secure and ready-to-use platform that helps development teams bring products to market faster - without compromising on quality, security or long-term availability.

  Name Size
Datasheet DHSBC STM32MP2 ~ 5 MB
