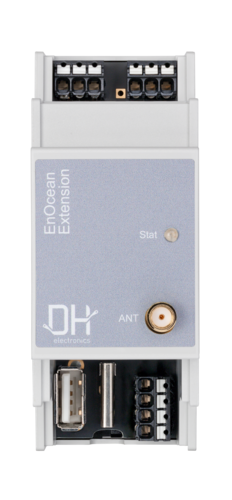

DRC-X EnOcean / RS485 Extension

NEW

Expand your IoT Gateway with DRC-X EnOcean / RS485 Extension

Extension with EnOcean and RS485 to connect intelligent devices and sensors
Available as a stand-alone device or as an internal extension in the DRC02 housing
Simple connection to the IoT Gateway via USB 2.0, no additional power supply required
Can be combined with DRC02, DRC Compact or other IoT Gateways
Tailored to the requirements of building automation
Design your smart EnOcean gateway with DRC-X EnOcean / RS485 Extension

Request product

Technical Data
Configurations
Product Details

Interfaces

USB Type C - upstream to host

1x USB 2.0 high-speed

USB Type A - downstream

1x USB 2.0 high-speed

EnOcean

868 MHz

RS485

up to 40 Mbps

Physical

Dimensions

89.8 x 35 x 59.8 mm

Weight

80 g

Typ. power consumption

2.0 W

Operating temperature

0 to +50 °C

Storage temperature

-20 to +70 °C

Certifications

EN 61000-6-2 | EN 61000-6-3 | ETSI EN 300 220

IP protection

IP30

Item Number	Model (other configurations on request)	Product description
FD00049	DHCON-DRC-X-EnOcean-RS485-SA-S-C-01	DHCON Extension EnOcean / RS485

* Other configurations on request

With the DRC-X EnOcean / RS485 extension, existing IoT gateways can be extended easily and cost-effectively. The extension adds EnOcean and RS485 to connect sensors and intelligent devices in smart home or smart building applications. The DRC-X EnOcean / RS485 extension is available as a stand-alone device or can be integrated into the DRC02 IoT Gateway. The extension can be easily connected to the IoT Gateway via USB 2.0 and requires no additional power supply. The DRC-X EnOcean / RS485 extension from DH electronics is tailored to the needs of building automation and enables customers to create their own smart EnOcean gateway with the DRC02 or DRC Compact.

Downloads

	Name	Size
	Datasheet DRC-X EnOcean / RS485 Extension	~ 5 MB

Interfaces

USB Type C - upstream to host

1x USB 2.0 high-speed

USB Type A - downstream

1x USB 2.0 high-speed

EnOcean

868 MHz

RS485

up to 40 Mbps

Physical

Dimensions

89.8 x 35 x 59.8 mm

Weight

80 g

Typ. power consumption

2.0 W

Operating temperature

0 to +50 °C

Storage temperature

-20 to +70 °C

Certifications

EN 61000-6-2 | EN 61000-6-3 | ETSI EN 300 220

IP protection

IP30

Item Number	Model (other configurations on request)	Product description
FD00049	DHCON-DRC-X-EnOcean-RS485-SA-S-C-01	DHCON Extension EnOcean / RS485

* Other configurations on request

	Name	Size
	Datasheet DRC-X EnOcean / RS485 Extension	~ 5 MB
